9CY CTA LED tape (10m)

Name: 9CY CTA LED tape (10m)
SKU: 9CY-10
Price: 1285.56 AED
Availability: InStock

Great for uniformed designs or injecting some creative flair to a project.

6 in stock

SKU: 9CY-10

Overview
Features
Specifications
Resources

Color Temperature Adjustable LED Strips for Versatile Design Projects

ENTTEC designs and manufactures a complete range of high-quality, high-output LED strips to suit any desired mood or effect. CTA tape is colour temperature adjustable, allowing you to achieve your required setting.

9CY is a 24V CTA LED Tape, which allows variations between 3000K to 5500K color temperature range.

You can drive this CTA tape at multiple colour temperature ranges. The maximum at 3000K is 488 lumens per metre, and the maximum at 5500K is 570 lumens per metre.

Maximum input current rating is 0.49 A per metre, which equals 2.45 A for 5-metre length. 9CY consumes a maximum of 11.8W per metre, and has a maximum continuous length of 9.2 metres.

Specifications

DC Power	24V
Watts/meter (max)	9.6
LED Quantity	120/m
Product Family	9CY
Product Code	9CY2
Colour	CTA: 3000K – 5500K
Lumens/meter (max)	420 + 420
Input Current 1M	0.4A
Input Current 5M	2A
IP	20
Reel Length	10m
Strip Width	11mm

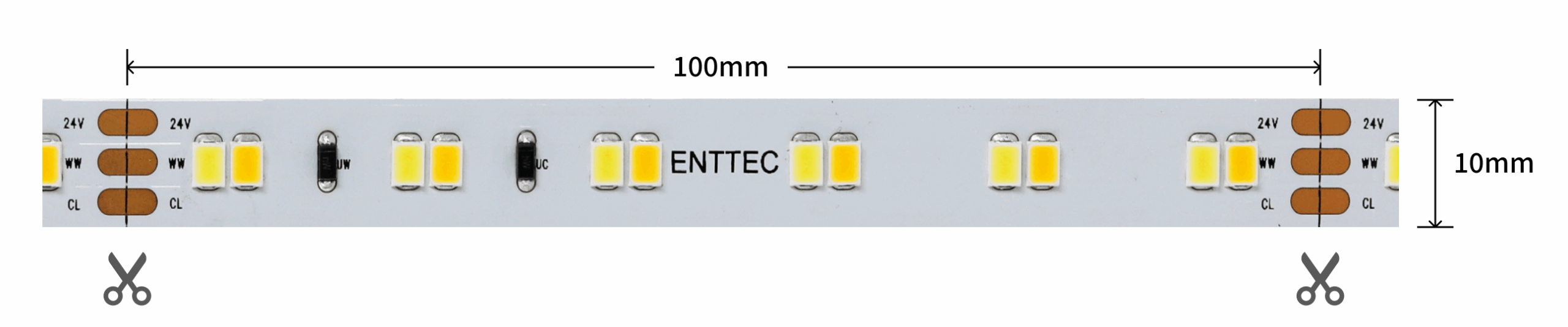

Cuttable	100mm
Maximum Continuous Length	13m
