NEON FLEX

With its rich, colour-changing LED pixels housed within a bendable silicone strip, our professional Neon Flex is one of the most versatile light fixtures imaginable.

SKU: 73060

Flexible LED strip lighting

Introducing ENTTEC Neon Flex: the ultimate lighting solution that combines flexibility, durability, and ease of installation. Made from high quality silicone, this waterproof LED strip is designed to handle any environment.

With its ability to bend either horizontally or vertically, ENTTEC Neon Flex allows for easy shaping and contouring, enabling you to create amazing, unique designs.

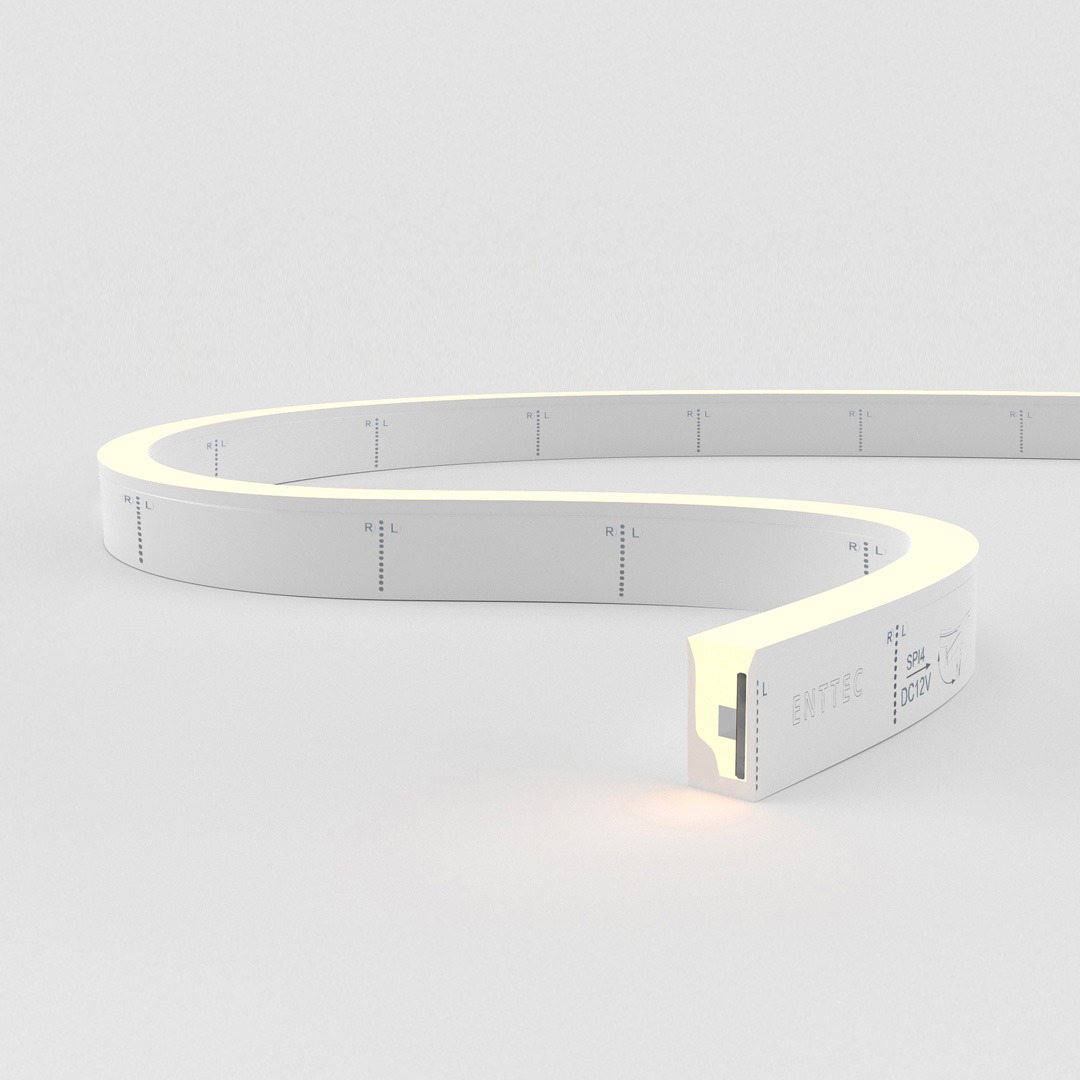

A length of Neon Flex curved into an S on a pale background, glowing warm white along its top face, the cut end printed with ENTTEC and SPI4 DC12V and R and L cut marks repeating along the side.

Image 1 of 4

Weather resistant

Designed for use indoors or out, Neon Flex is created using silicone, so it is more resistant to UV light and high temperatures than PVC. This means no undesirable cracking or yellowing.

Timeless retro appeal

We all love the amazing warmth of traditional glass neon gas tubing: think classic 1950s American diner. Modern LED flex gives you the same effect without the old environmental or safety concerns.

True brightness

If your experience of flexible LED lights has been limited to “toy” strips from hardware chains or budget online sellers, you’ll be blown away by the rich colour output of ENTTEC professional LED Neon Flex.

Smooth as silk

Create truly beautiful effects. Whether you want to attract attention with bold primary colours, or have dreamy pastels melt into each other, our LED flex can conjure up any ambience you desire.

Architectural style

With their crisp, white profile, LED Neon Flex strips are perfect for adding a sleek, modern look to your space. Install gorgeous curves or precise straight lines to create unique architectural accents with ease.

Ultra flexible

No other light fixture provides the pliable nature of LED Neon Flex. With its ability to bend horizontally, simply shape it into long or tight curves as required, giving you the literal flexibility to realise almost any design you can imagine.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

International compliance
  • UL Listed compliance mark

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.

This ENTTEC product also conforms to the following international compliance and safety standards:

  • FCC compliance mark
  • UKCA compliance mark
  • CE compliance mark
  • RCM compliance mark

Accessories

Mounting options

For ease of installation, we offer a range of aluminium extrusions designed to fit each style of our Neon Flex.

For surface-mounting or recessed applications, these are available in linear lengths as well as special forms that can be shaped into curves either horizontally or vertically, to suit the direction that your flex bends.

Accessories

We also have a range of system accessories to suit your needs, including connectors. Refer to the data sheets below for more information on mounting and cabling options.

Close-up of a length of white Neon Flex bent into a ring on a grey background, with stainless steel mounting clips spaced all the way around its base.
A white splitter lead on a grey background, a three-pin male connector on one end, a threaded female connector on the other, and a short branch ending in bare red and black wires.

So many possibilities

LED Neon Flex is ideal for both indoor and outdoor lighting. Its versatile, durable and energy-saving nature lends itself perfectly to eye-catching signage or commercial building façades, not to mention multiple uses around your home.

You can also install it in cars, ships, museums, theme parks, nightclubs, concert venues … you name it. And when used alongside ENTTEC’s DMX or LED pixel controllers and software, your audience will be blown away.

Talk to us today and discover how ENTTEC’s professional Neon Flex can transform your project.

Neon Flex connection diagram: wiring to a power supply and DMX or SPI pixel controller.

1. Pick your NEON FLEX style

Whether you need a horizontal or vertical bend, or a wide or focused beam angle, we have the right NEON FLEX design to suit your requirements.

Banner headed NEON FLEX S6 in black on white, beside a length of unlit flat-topped white flex curved back on itself, its cut end printed with ENTTEC.
Neon Flex S6 style specification panel.
Banner headed NEON FLEX S7 in black on white, beside a length of unlit white flex curved back on itself, deeper and square in section with a flat top, its cut end printed with ENTTEC.
Neon Flex S7 style specification panel.
Banner headed NEON FLEX S8 in black on white, beside a length of unlit white flex curved back on itself, its top face rounded into a raised crown, the cut end printed with ENTTEC.
Neon Flex S8 style specification panel.
A banner reading NEON FLEX S9, with a white neon flex strip curving in an S through the frame, its cut end showing the square silicone profile and the ENTTEC name printed along the side.
Neon Flex S9 style specification panel.

2. Choose a control protocol

Each style is available with any one of the following LED protocol variants:

A circular icon divided into twelve wedges, red, green and blue across the top right, fading through pale blue and white at the bottom, with amber, orange and gold filling the left.
non-addressing
SINGLE COLOUR (24V)
A circular icon split down the middle, the left half saturated yellow and the right half pale washed-out yellow.
non-addressing
TUNEABLE WHITE (24V)
A circular icon quartered into four flat colours, red top left, pale cream top right, green bottom left and blue bottom right.
non-addressing
RGBW (24V)
A grey circular icon of a 5-pin XLR connector face, its five white pin holes arranged two above, two in the middle and one below, inside a ring with a keyway notch.
pixel
DMX (24V)
The ENTTEC lowercase e mark built as a circle of rounded squares in orange, red, amber and brown, with the counter of the letter left white.
pixel
SPI (12V)

* Refer to the data sheet to check which SPI voltage options are available for your chosen style.

3. Fine-tune your colour temperature

A variety of colour temperature options are available for each protocol*, ranging from a super-warm 2700K up to an ultra-cool 6500K.

Colour temperature chart: a horizontal bar grading from orange through amber and yellow to white and pale blue, with tick marks below labelled 2700K, 3000K, 4000K, 5000K and 6500K.

* Refer to the data sheet to check which temperature options are available for your chosen style and protocol.

4. Talk to us and we’ll make it for you!

ENTTEC’s NEON FLEX is custom-made to your unique requirements so you can be sure it’s going to be exactly what you need.
Get in touch with our friendly team today and leave the hard work to us!

Contact us

Specifications

Connectors and network
Connector typeIP68 twist lock connector
Output and control
Available protocolsDMX (5-pin) / SPI (3-pin) / Non-addressable single colour (2-pin), tuneable white (3-pin), or RGBW (5-pin)
Available beam angle120° (S6 / S7 / S9) / 270° (S8)
LED lifetime>36,000 hours L70
Power and thermal
Temperature rangeInstallation: 0°C to 50°C / Operating: -25°C to 55°C
Physical and supply
Available stylesFour options: S6 / S7 / S8 / S9
Available bendingHorizontal (S6 / S7 / S8) / Vertical (S9)
Body materialSilicone
Minimum bendable diameter200mm
IK ratingIK08
IP ratingIP68
Dimension20mm x 12mm (S6) / 16mm x 16mm (S7 / S9) / 25mm x 12mm (S8)
Warranty3-year return-to-base manufacturer warranty as standard
Talk to us to arrange longer periods

Resources

Data sheet
Documentation
Images
