D-Split

The small, light and portable D-Split offers a great solution to extend your DMX chain, without sacrificing the quality.

ANSI E1.11 – USITT DMX512-A compatible. Each unit repeats and re-buffers all 512 channels of DMX from the input on each output.

Each output port features protection up to 1000V of stray voltage, meaning any issues stay on the DMX line and don’t jump across into the rest of your system.

Using a D-Split between your DMX controller and lights is a smart way to help protect your precious gear from getting damaged by DMX cabling faults or stray voltage, all whilst making your DMX wiring scheme far more flexible.

Simply connect your fixtures and controls – let D-Split take care of the rest.

The D-Split features built-in mounting points to attach an optional TS35 DIN rail clip (included in the box) to allow you to install it in control cabinets or on surfaces/walls with a DIN rail fitted.

We know that using DMX adaptors to convert between 3- and 5-pin is a pain. You either forget them, lose them, or they take up unnecessary space in your installation. It’s this attention to detail that we believe helps to make ENTTEC products stand out.

We have two D-Split variants that make this pin issue a thing of the past! Choose between:

70578: 2 x 3-pin + 2 x 5-pin outputs
70579: 4 x 5-pin outputs
70574: 4 x 3-pin outputs

We’ve included both 3- and 5-pin DMX input connectors on both variants for you to connect the DMX input you need.

The D-Split is shipped with a universal DC power adaptor as standard. However, if space is tight and you want to share a single power supply between all of your devices (e.g. in a DIN Cabinet), it can accept 7-24V DC input.

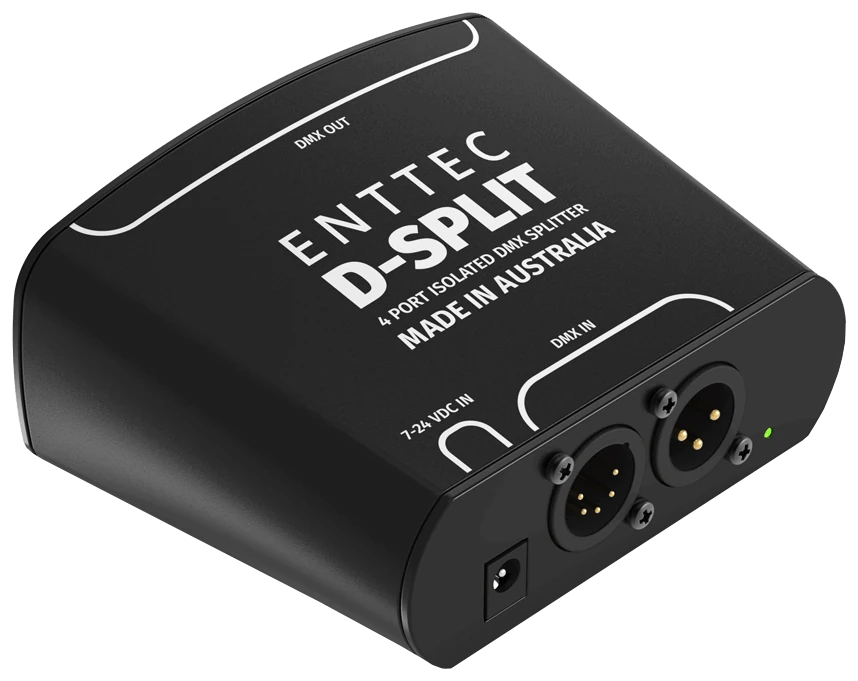

The updated D-Split case design features a robust ABS construction with a single power LED, allowing it to blend into the background of your projects.

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 1-year return-to-base manufacturer warranty on this product.
