DIN RDS4 Mk2

DIN RDS4 is the new installation grade 4-port DMX/RDM splitter in a compact, 4-module DIN-rail form factor.

SKU: 72004

Our compact, new professional DMX/RDM splitter

ENTTEC’s DIN RDS4 is an installation grade, 4-port, DMX/RDM isolated splitter engineered to take any architectural, commercial or entertainment project to the next level.

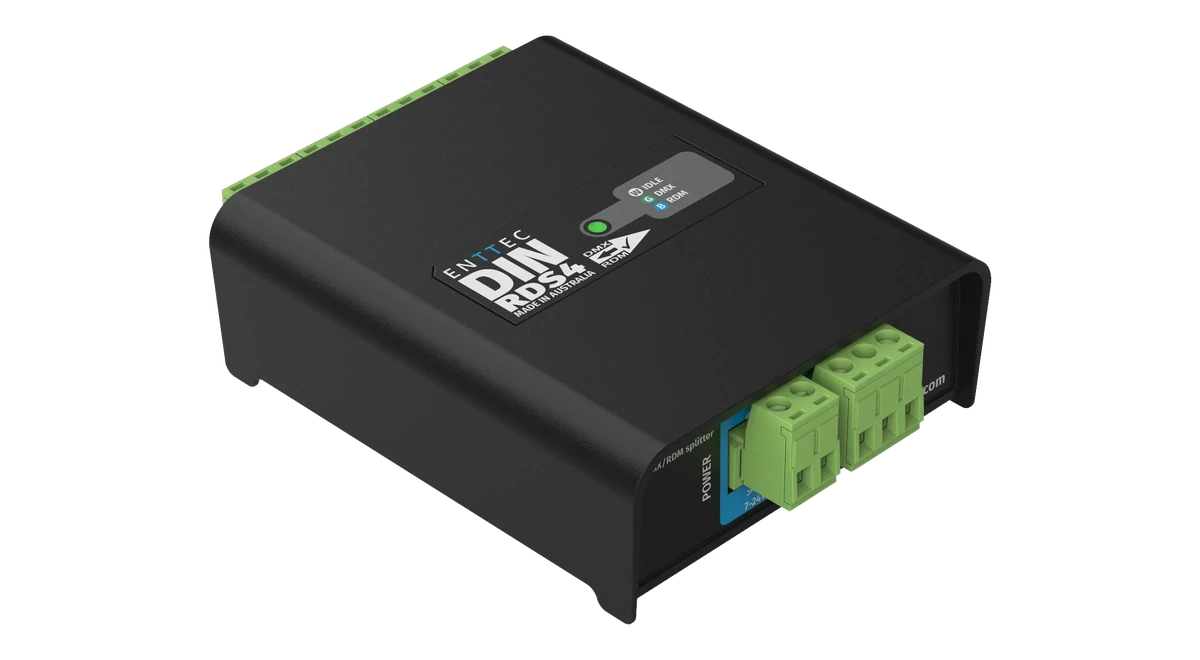

The DIN RDS4 seen from above its power end, the lid printed with ENTTEC DIN RDS4 and the DMX/RDM arrow, and the near face carrying a blue POWER block marked 7-24V DC beside two green plug-in terminals, with the output terminals along the far edge.

Image 1 of 5

Small yet powerful

Housed in a slim, electrically-insulated, 4-DIN-module enclosure, the DIN RDS4 is compatible with DMX512-A & RDM (E1.20). The DIN RDS4 actively changes its refresh rate to match your DMX input source.

Flexible mounting options

The DIN RDS4 features a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.

Protect your fixtures

1500V isolation between any individual DMX port protects your DMX source and lighting fixtures from power surges and stray voltages on the DMX line by blocking stray voltage from crossing to other DMX chains.

Monitor activity

The forward-facing LED indicator allows DMX & RDM activity to be monitored quickly with just a glance.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Wiring diagram
DIN RDS4 Mk2 wiring diagram showing DMX input and four buffered DMX outputs.

Specifications

Connectors and network
Connectors1* 3 Pin Phoenix DMX input
4* 3 Pin Phoenix DMX output
1* 2 Pin Phoenix power input
LED indicatorsYes
Output and control
Supported protocolsUSITT DMX512-A
ANSI E1.20 RDM
Max. output channels1 universe (512ch)
Max. output refresh rate43FPS
Firmware updatesNo
Power and thermal
Input voltage7.5V to 24V DC
Max. power draw5W
Max. heat dissipation5W
Environmental operating temperature-20°C to 50°C / -4°F to 122°F
Environmental operating humidity5 – 95% (non-condensing)
Physical and supply
Body materialABS plastic
IP ratingIP20
Mounting optionsSurface or TS35 DIN rail mount
Unit dimensions100.5 x 72.25 x 34mm
Unit weight0.10kg / 0.22lbs
Shipping dimensions140 x 140 x 40mm
Shipping weight0.16kg / 0.35lbs
Warranty3-year return-to-base manufacturer warranty
