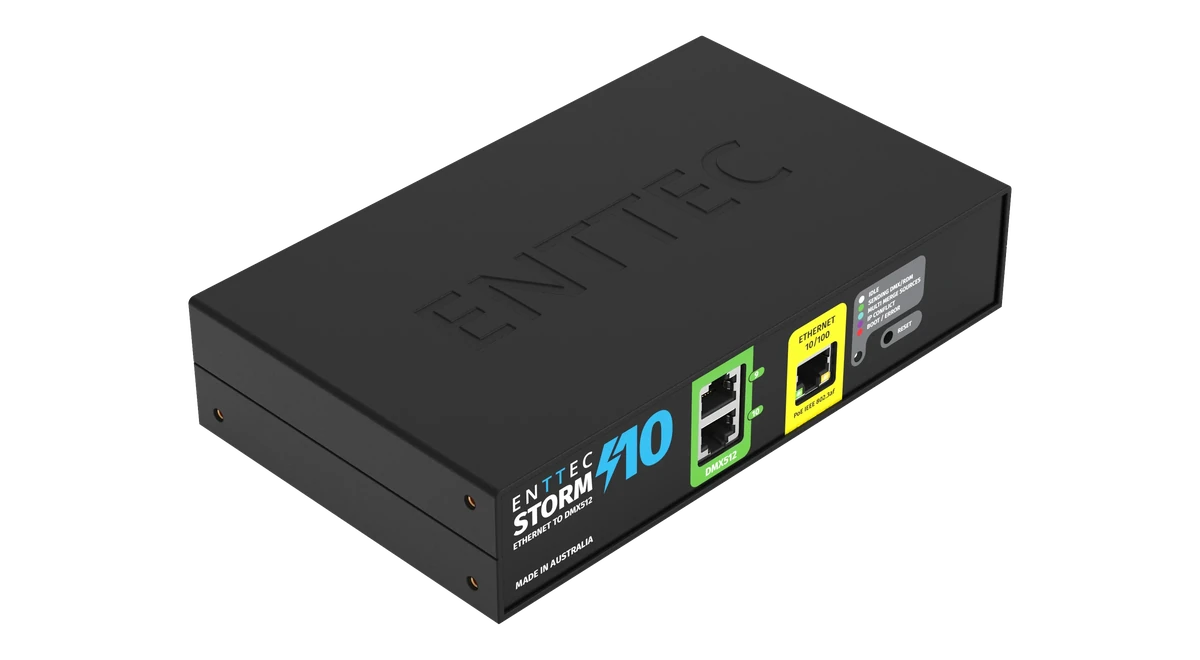

Storm10 – 10-universe Ethernet to DMX gateway

The Storm10 provides flexible control for any project, handling 10 universes of DMX data as standard, or up to 40 in Overdrive mode, with options to expand by linking multiple units. Power it via PoE or DC. Configure each port individually for unique setups, adjusting protocols, merging options, and more. It features intuitive mounting options and supports Art-Net, sACN, ESP, and DMX512, with full RDM on every output: discover, address and monitor up to 512 fixtures, plus GET/SET pass-through so your console or software can reach them over Art-Net.

Overdrive runs the DMX outputs at up to 2 Mbit/s, carrying up to 4 universes on a single port and up to 40 across all 10 outputs. RDM stays available in Overdrive as well as standard mode, so you can drive high-density pixel installations at speed and still discover, address and monitor your fixtures on the same output. A configurable refresh-rate cap, 40 Hz by default, keeps timing predictable across the rig. Receiving devices need to support the higher data rate, so check your fixtures before switching a port over.

Just like all ENTTEC network products, simply connect to your Storm10 from anywhere on the same network using your favourite web browser to configure, manage and update your device settings. Switch the interface between light and dark themes, and use the live DMX view to check output levels without leaving the browser. It’s that easy!

Choose from either LTP or HTP Merging per port (with up to 2 sources), with Art-Net Sync supported for frame-accurate output. Use another control source and let the Storm10 handle the output just to test your setup, then revert back to the master source when required.

We’re not new to this industry. We know that sometimes accidents happen or faults develop on installations over time. That’s why the Storm10 has been designed to block DC power entering each of the data ports in the case of a short circuit or incorrect wiring. Rogue power can’t pass through the Storm10 into your wider installation.

The Storm10 has been engineered for 24/7 operation and surge protection. If your data cabling has a fault that causes a spike in voltage, a heavy-handed installer gives it static shock, or maybe your DMX lines have a lot of electrical noise on them, the issue won’t be passed through the Storm10 to your other equipment. Any disturbance is automatically suppressed.

Check out the ENTTEC Knowledge Base to learn which third party software is compatible with ENTTEC devices.

Combine the Storm10 with the S-PLAY show controller to trigger or schedule lighting states. Seamlessly integrating with a huge number of popular building integration management and smart home systems, you can simply set and forget, knowing that you can rely on your S-PLAY to precisely schedule your show whenever it’s required – 24 hours a day, 365 days a year!

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.

This ENTTEC product also conforms to the following international compliance and safety standards:
