Open DMX USB

The Open DMX USB is a no-frills, inexpensive way to get into the world of controlling DMX devices from your computer. Perfect for project work, small live music and amateur theatre applications.

SKU: 70303

Maximum value from a minimum spend

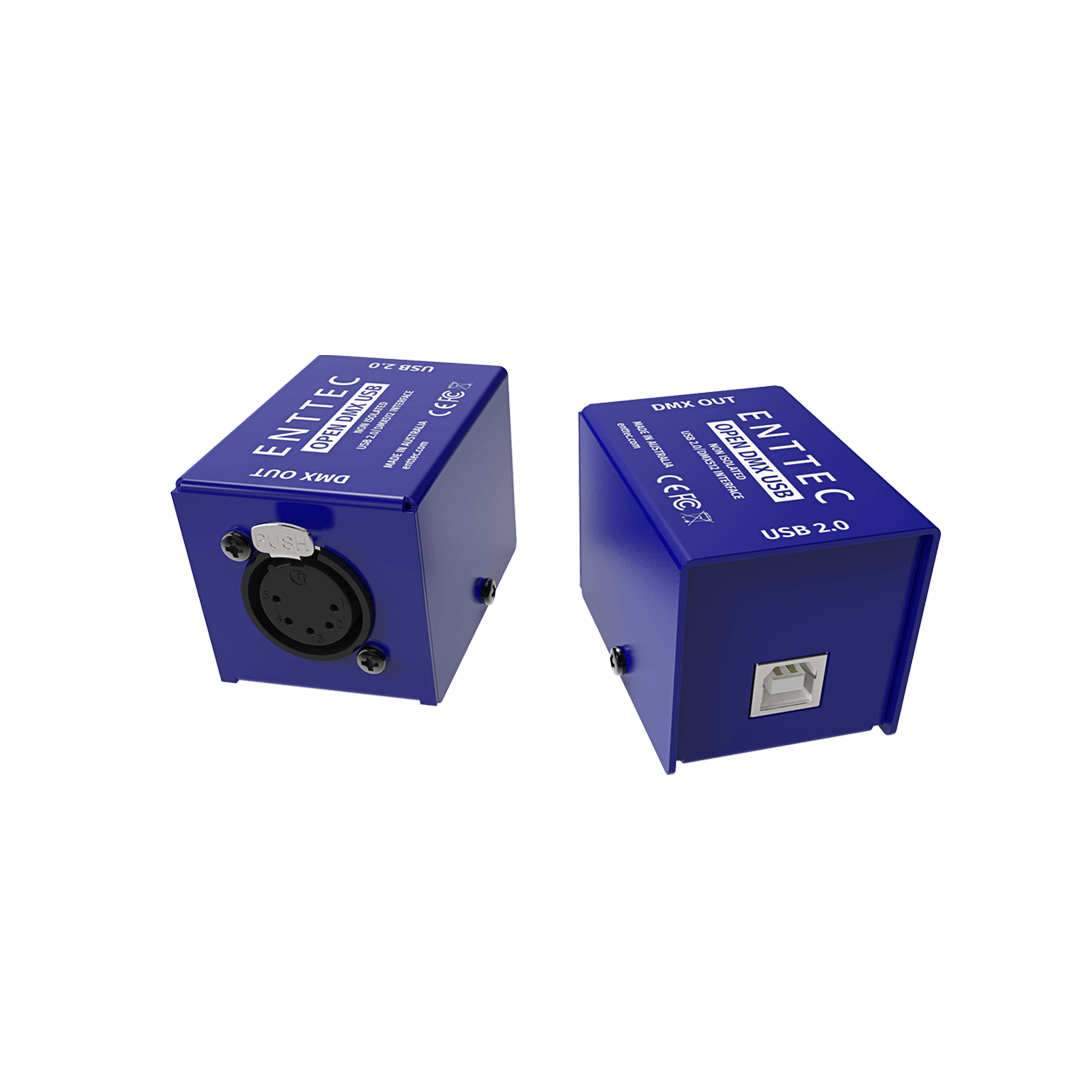

The Open DMX USB features a robust USB type-B port to connect to your computer and a 5-pin DMX output to connect to your DMX lighting. With its folded metal construction you can be sure that it’s at home on a workshop test bench, long-term installation or ready to tour on the road.

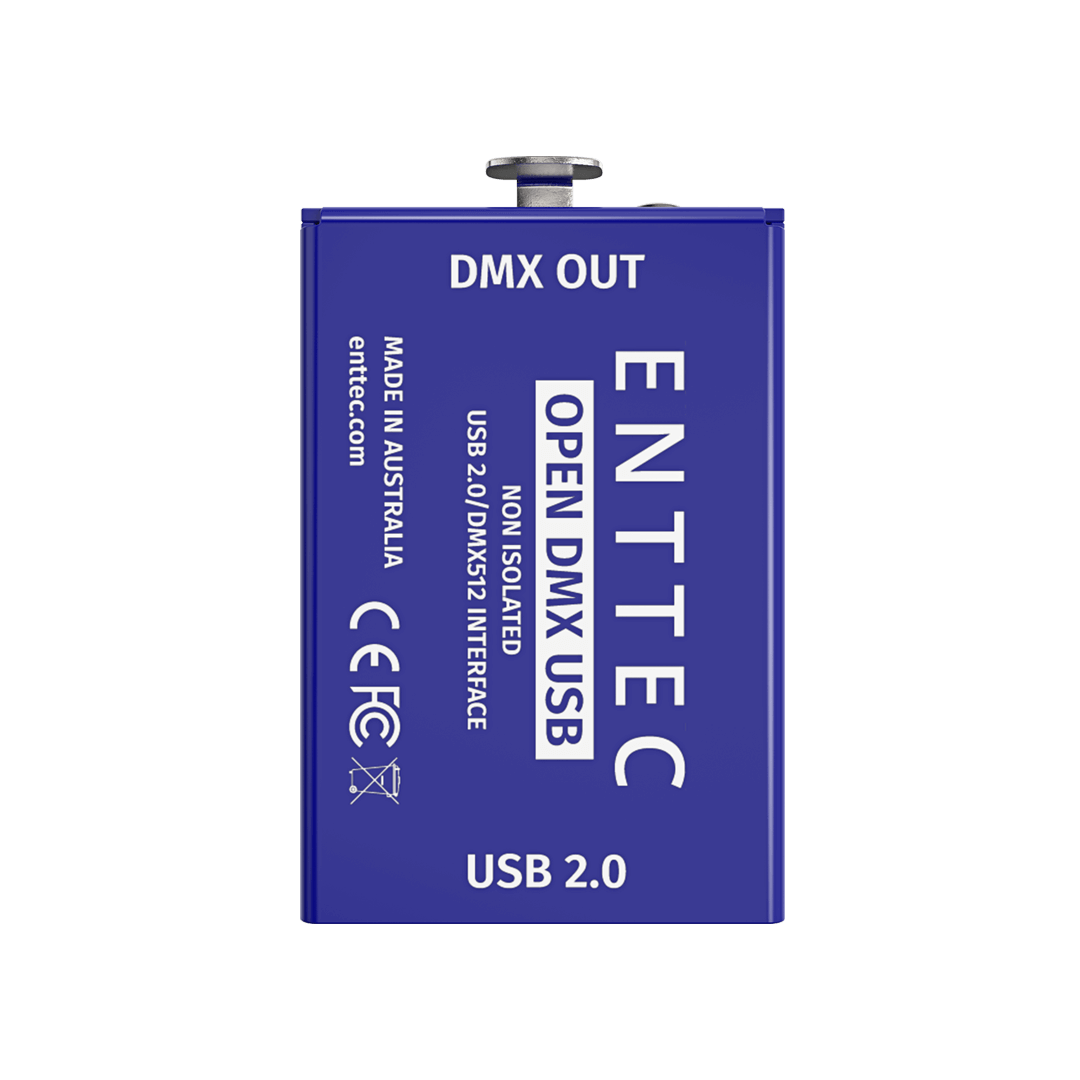

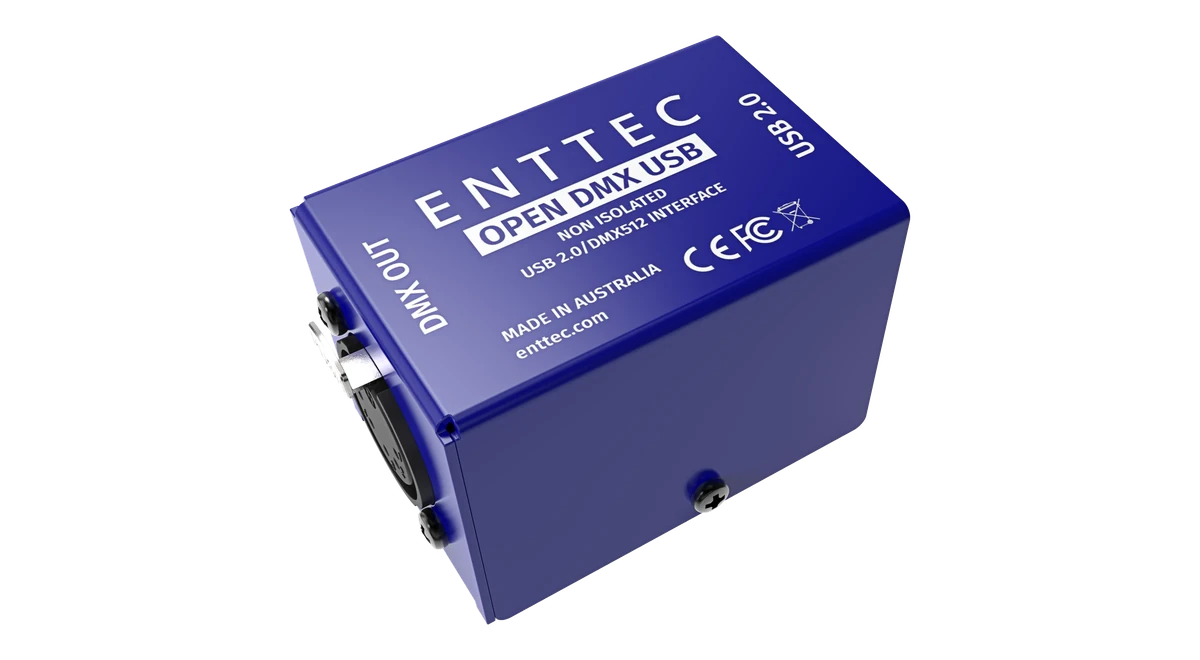

The blue Open DMX USB enclosure from above, the lid printed ENTTEC OPEN DMX USB, NON ISOLATED, USB 2.0/DMX512 INTERFACE and MADE IN AUSTRALIA with CE, FCC and WEEE marks, DMX OUT at one end and USB 2.0 at the other.

Image 1 of 5

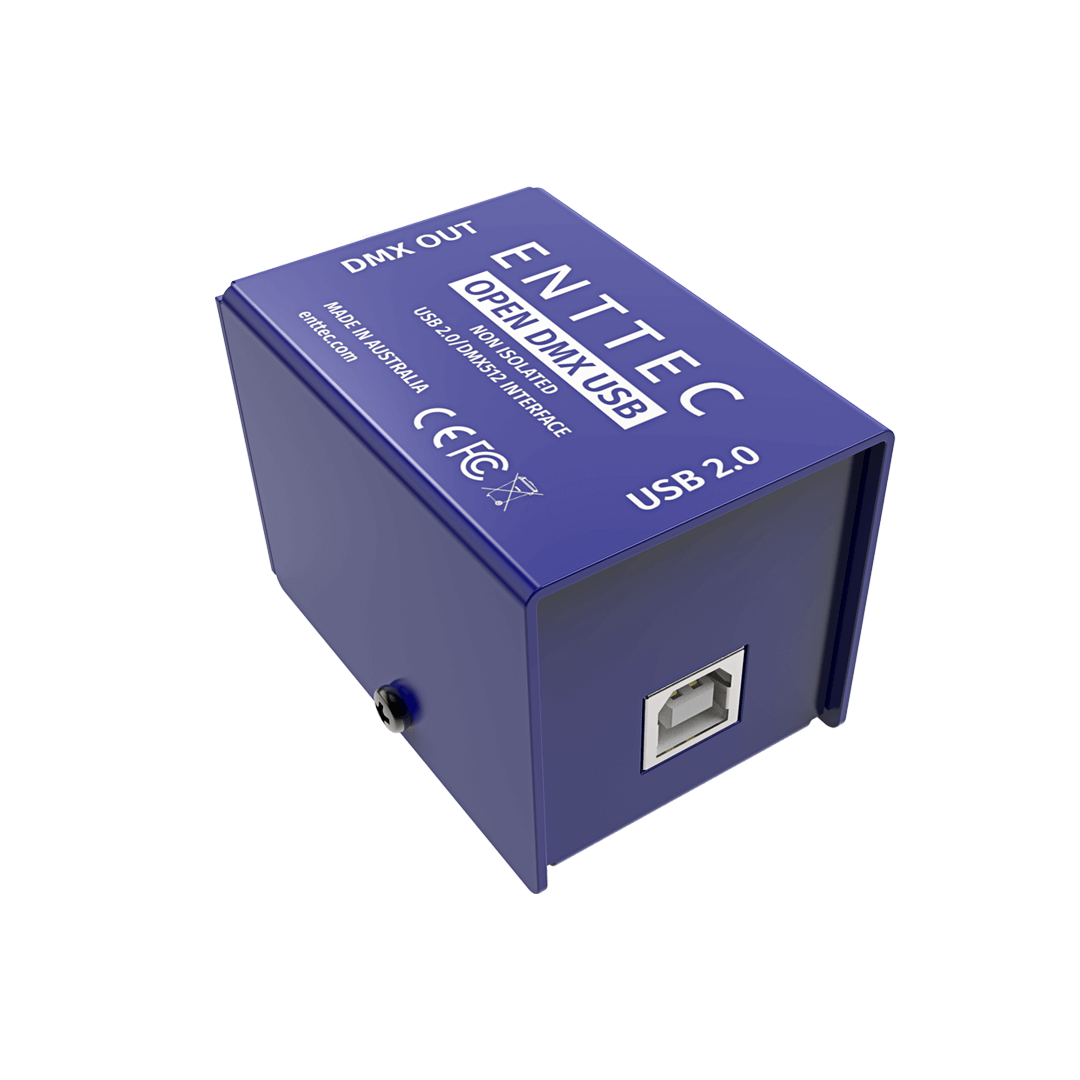

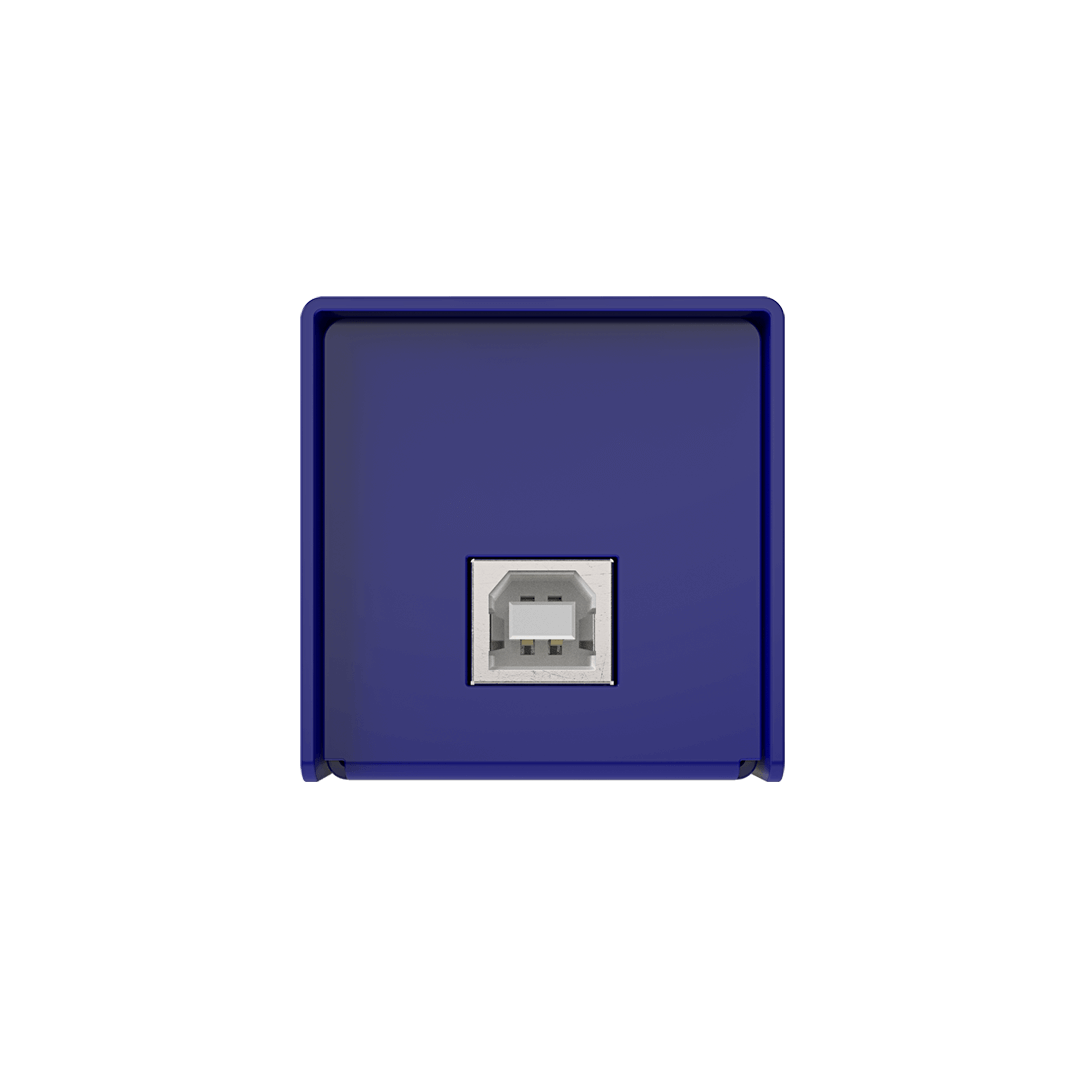

USB Type-B Port

The Open DMX USB features a reliable USB Type-B port, ensuring a strong connection between your computer and the device. This allows for seamless data transfer during operation.

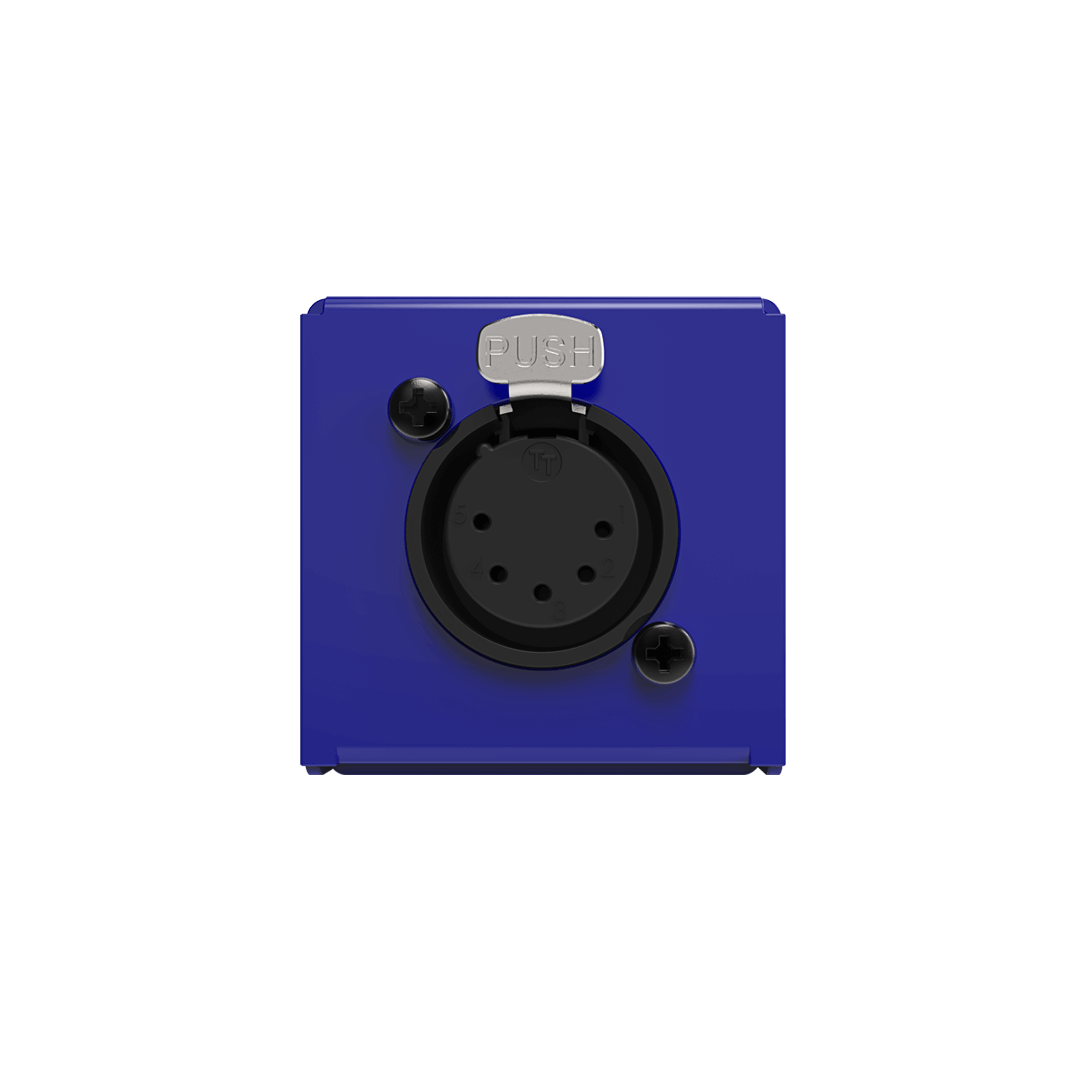

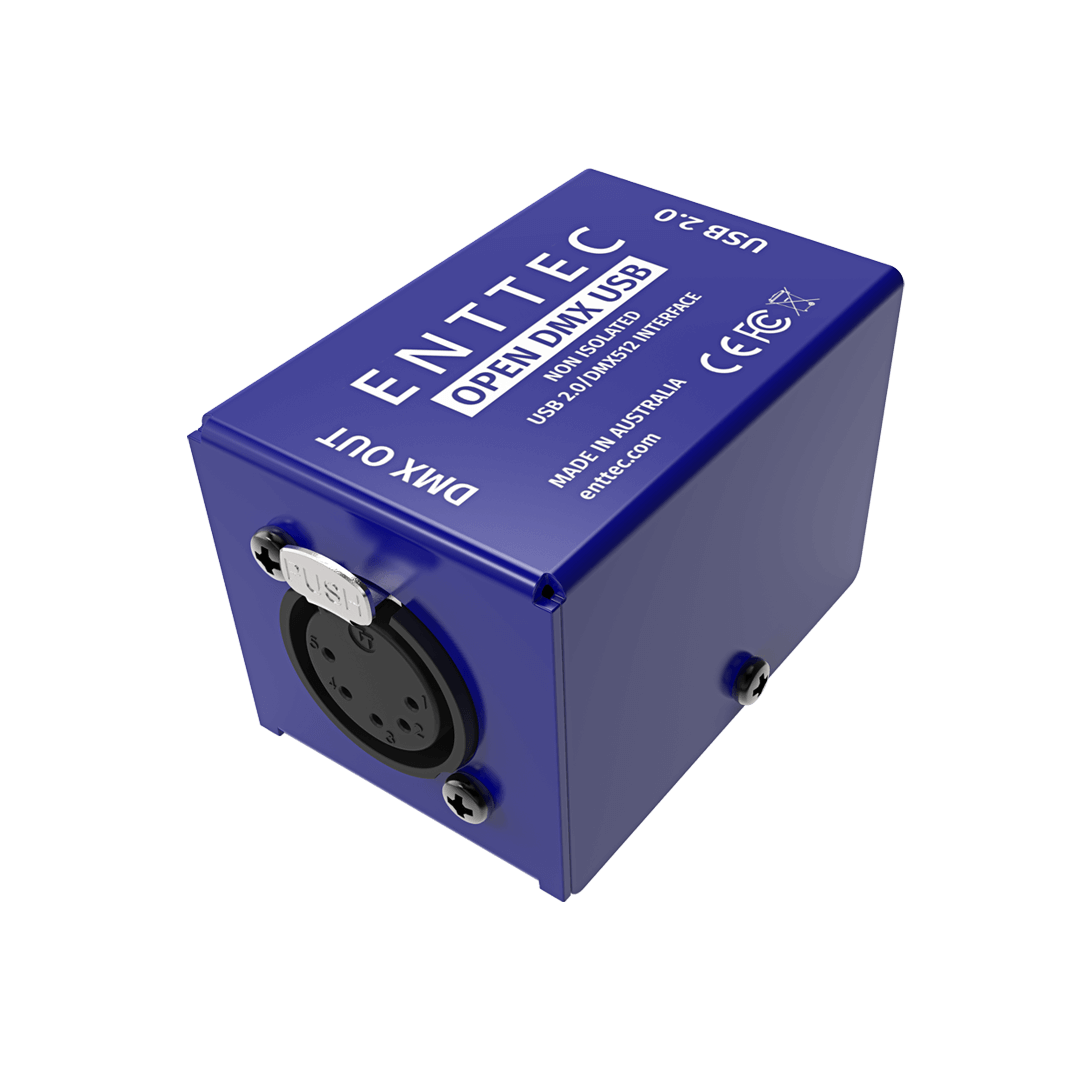

5-Pin DMX Output

Its 5-pin DMX output easily connects to your DMX lighting system, offering compatibility with industry-standard equipment.

Sturdy Build

With its folded metal construction you can be sure that it’s at home on a workshop test bench, long-term installation or ready to tour on the road.

512 DMX Channels

It supports control of 512 DMX channels and full compatibility with a wide range of 3rd party software, giving users substantial capacity for managing complex lighting setups.

Cross-Platform Compatibility

The widely compatible FTDI driver the Open DMX USB uses to communicate with your computer is compatible Windows, macOS and Linux operating systems, giving a wide scope for flexibility.

Manufactured at ENTTEC

Similarly to the rest of the ENTTEC product range, this widget is manufactured in ENTTEC’s Melbourne factory and undergoes the same level of inspection, quality control as the rest of our professional grade products.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Open DMX USB vs. DMX USB Pro

Join Jordan from ENTTEC as he breaks down the differences between the Open DMX USB and DMX USB Pro. He’ll guide you through the features of each controller, helping you choose the one that best fits your project needs.

Specifications

Connectors and network
Connectors1* DMX Output (Female XLR5), 1* USB 2.0 Type-B
LED indicatorsNo
Output and control
Supported protocolsUSITT DMX512-A
Maximum output channels1 universe (512ch)
Configuration softwareNo
Firmware updatesNo
Standalone playbackNo
MIDINo
Power and thermal
Input voltage5V DC (via USB)
Input current300mA
Power draw1.5W
Environmental Operating temperature0°-50°C
32°-122°F
Environmental Operating humidity5% – 95% (non-condensing)
Physical and supply
Body materialFolded Aluminium
IP ratingIP20
Mounting optionsN/A
Unit dimensions77x40x40 mm
Unit weight61 g / 0.13lbs
Shipping dimensions125x75x70 mm
Shipping weight0.16kg / 0.35lbs
Warranty3-year return-to-base manufacturer warranty

Resources

Data sheet
Images
Drivers
Developers

Please note: All the above programming examples are based on FTDI D2XX programming guide,
please check here for further help:
http://www.ftdichip.com/Support/SoftwareExamples/CodeExamples.htm

Others
