Expand the capabilities of your S-PLAY SP1-1 with this easy to set-up companion
Built to work exclusively with the S-PLAY SP1-1 (firmware V3 or above), ENTTEC's I/O Extender enhances your system’s input/output capabilities, integrating with setups for advanced smart lighting control.
Boost your system with an additional 20 digital inputs, 4 relays, and 2 analog inputs, making it ideal for both simple and complex installations - all easily managed via your existing S-PLAY SP1-1 interface.
With Ethernet In and Through ports, reliable network integration is effortless, while screw terminal and pluggable terminal blocks ensure a streamlined wiring process.

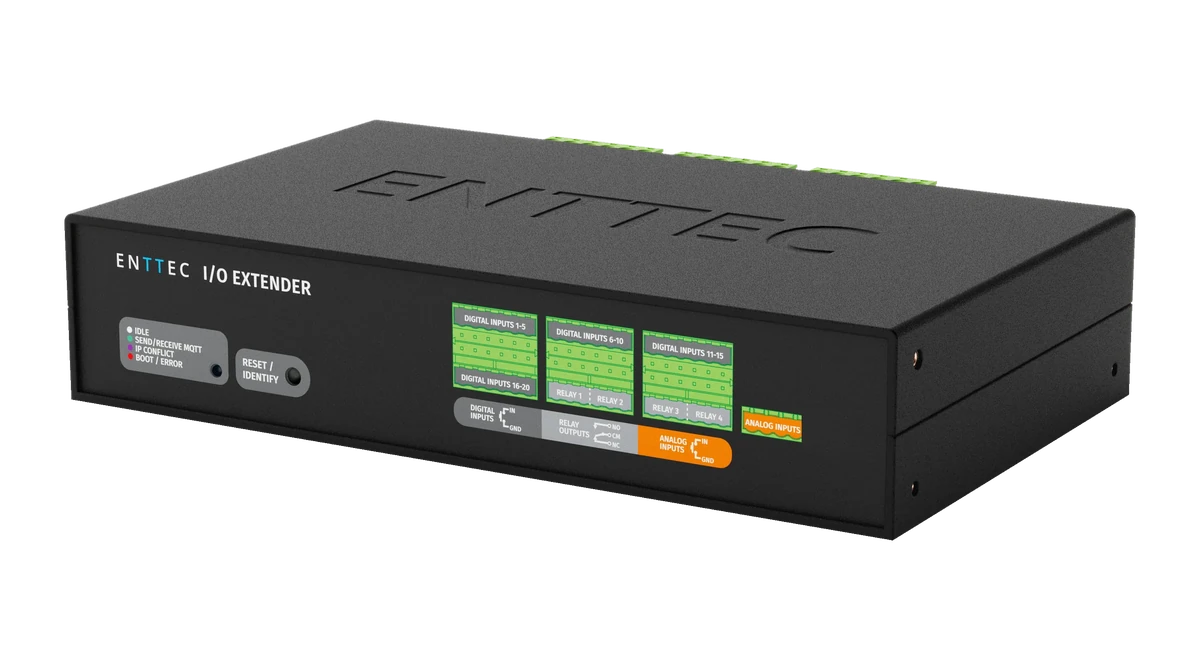

Image 1 of 4
Expand your control
Put simply, the I/O Extender adds a whole swathe of extra physical connections to your S-PLAY SP1-1 system, enabling you to create many more triggers and events than were previously possible to be controlled by the same unit.
With 20 general-purpose input/output (GPIO) digital inputs, you can add multiple sensors, wall switches and much more.
The 4 relay inputs are ideal for operating mechanical devices such as curtains, pumps, winches or lifts.
You also get two analog inputs for light sensors, pressure sensors, temperature sensors, joysticks … pretty much any analog signal device you like.
Flexible networking
The I/O Extender is equipped with two Ethernet ports to create a dedicated, standalone S-PLAY show playback network. Easy to configure and monitor via the S-PLAY's web interface.
Always in sync
The I/O Extender is engineered to ensure real-time data exchange and synchronized control with your S-PLAY device. It's also effortless to configure, with most settings easily managed via the S-PLAY's own web interface.
Versatile power input
Flexible power options with a 12-24V DC screw terminal input.
Seamless integration
Ideal for projects requiring additional signal management and control capabilities. Add multiple I/O Extenders to your S-PLAY setup to build a larger, more powerful network. Choose from flexible installation options, including half rack, full rack, or surface mount, to perfectly fit your setup.
3-year warranty
ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.
International compliance
This ENTTEC product conforms to the following international compliance and safety standards:
Let's get started!
Join Nic, as he takes a first look at the S-PLAY I/O Extender and delves into the additional functions that this nifty device will enable you to do.
Example of a larger network system using the I/O Extender
For a simpler playback setup, users can bypass the network switch by connecting the S-PLAY device and the other node directly to the I/O Extender’s inbuilt network switch. This creates a dedicated network, allowing preset shows playback without the need for a complex network infrastructure.
Specifications
| Connectors and network | |
|---|---|
| Connectors | 1 x Power (Screw terminal), 2 x Ethernet (RJ45), 20 x Digital input (Screw terminal), 4 x Relay (Screw terminal), 2 x Analog Input (Screw terminal) |
| LED indicator | Forward-facing LED indicator, Network link/activity Integrated into RJ45 ports) |
| Network speed | 10/100Base-T |
| Network discovery | ENTTEC EMU software |
| Network configuration | DHCP (Default) Static (192.168.0.10) |
| Output and control | |
| Control input | S-PLAY SP1-1 (Firmware V3 above) |
| Analog range | 0-10V |
| Relay | Max switching 60W, 125VA/2A |
| Power and thermal | |
| Power input | 12~24V DC |
| Max. power draw | 3.35W |
| Max. current draw | 280mA |
| Max. power throughput | 60W, 125VA/2A |
| Cooling method | Convection |
| Environmental operating temperature | 0°C to 50°C 32°F to 122°F |
| Environmental operating humidity | 0 to 95% (non-condensing) |
| Physical and supply | |
| IP rating | IP20 |
| Body material | ABS Plastic & Anodized Aluminium |
| Unit dimensions | 200mm x 120mm x 42mm |
| Unit Weight | 0.50kg / 1.10lbs |
| Shipping Dimensions | 335mm x 265mm x 78mm |
| Shipping Weight | 1.15kg / 2.54 lbs |
| Warranty | 3-year return-to-base manufacturer warranty |
| Compliance | RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
