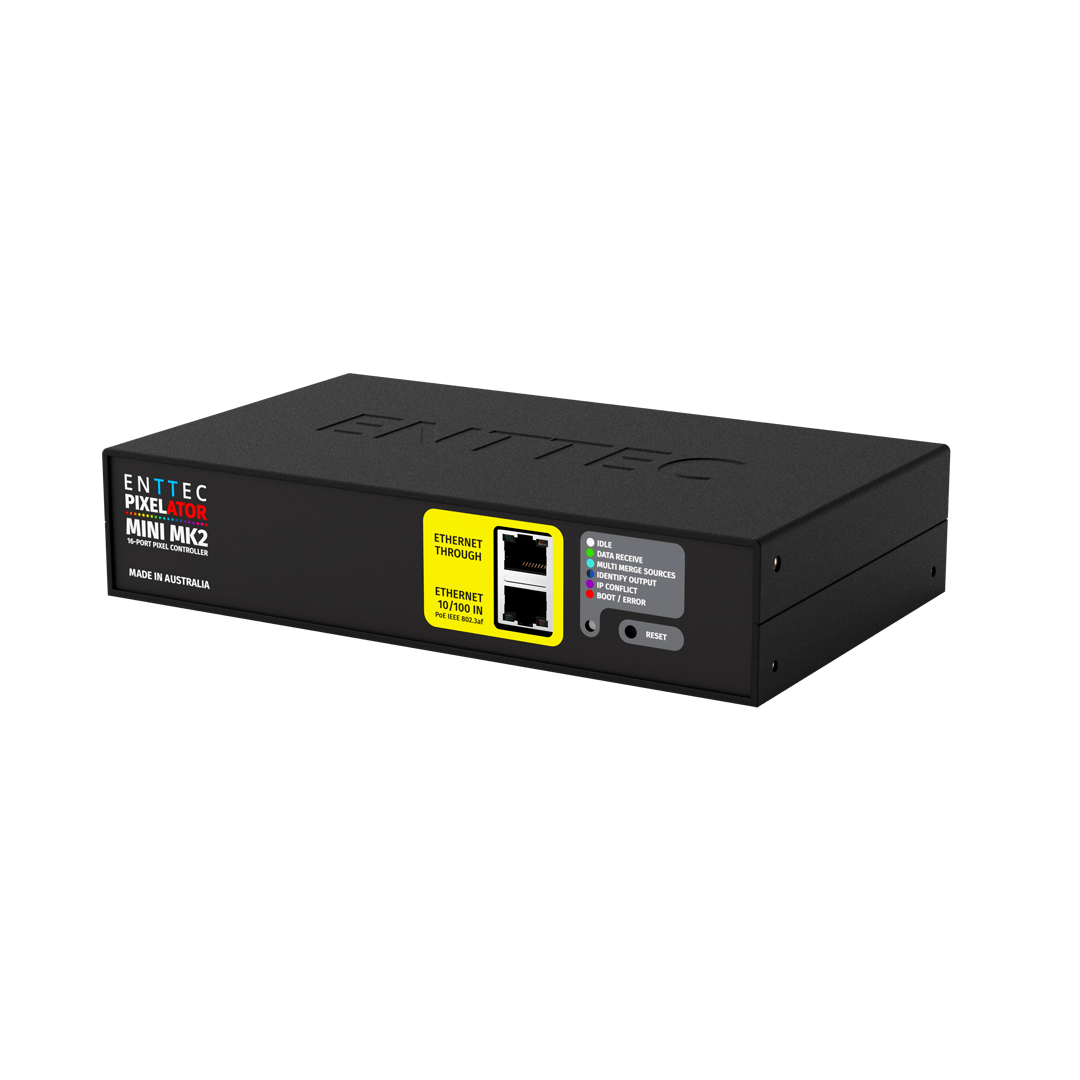

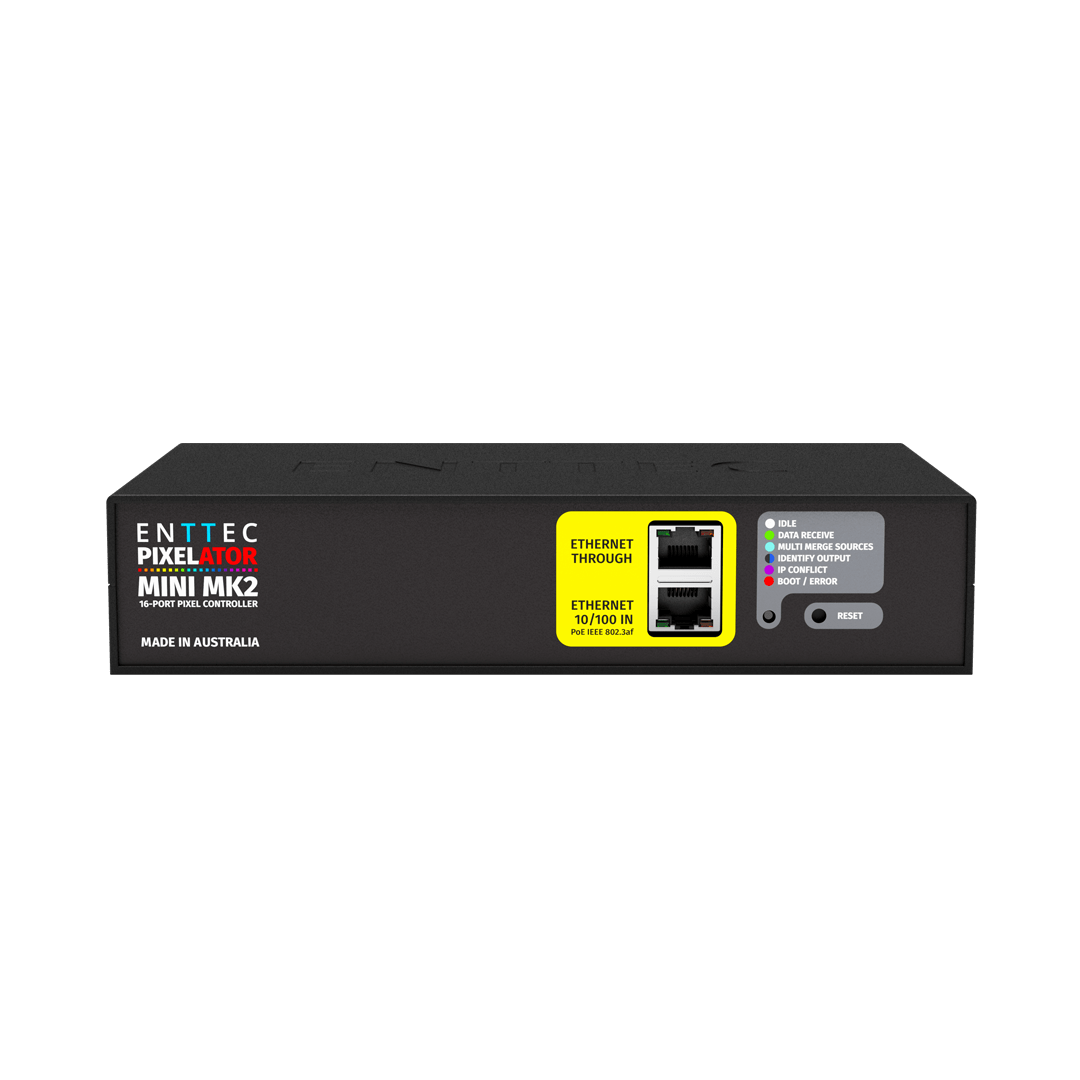

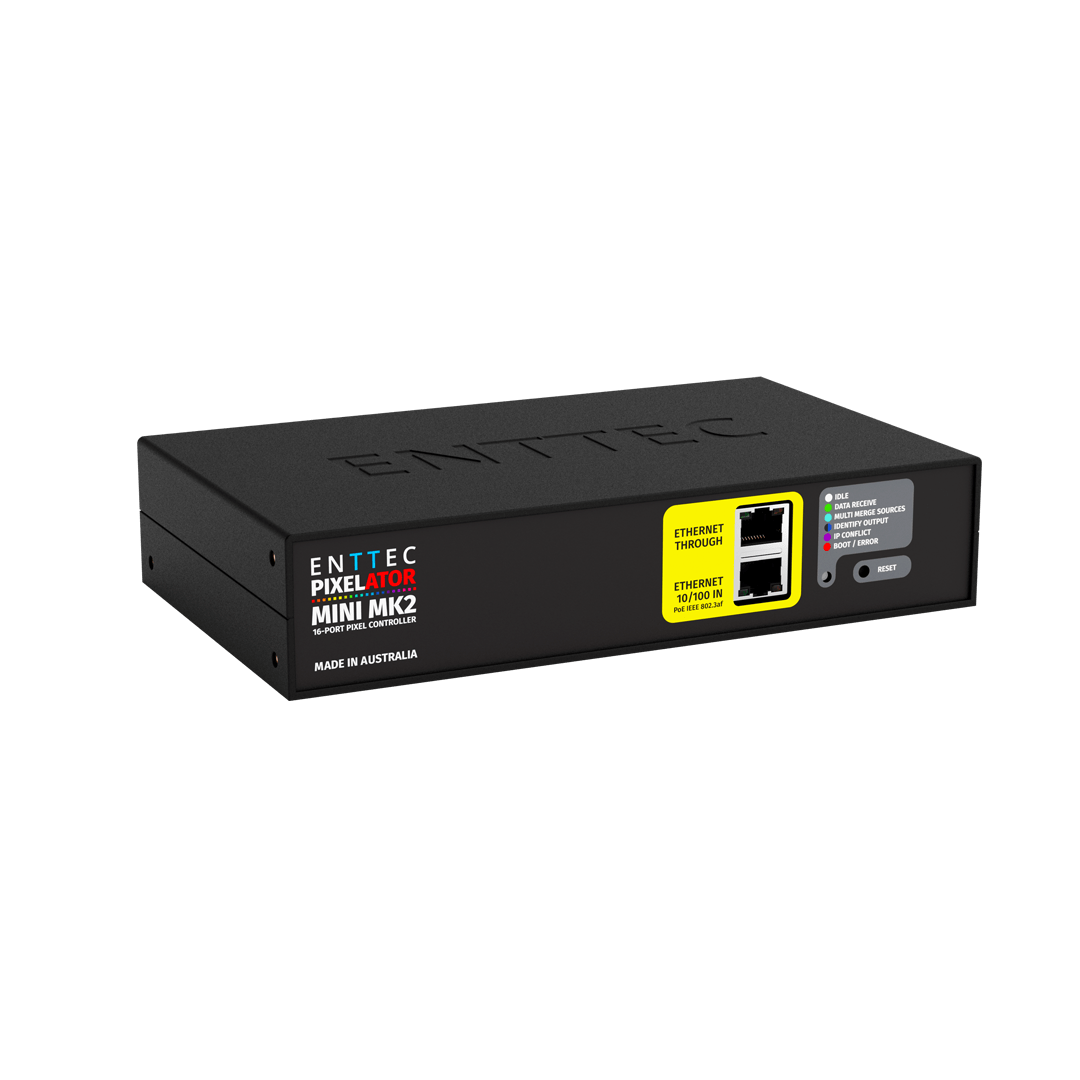

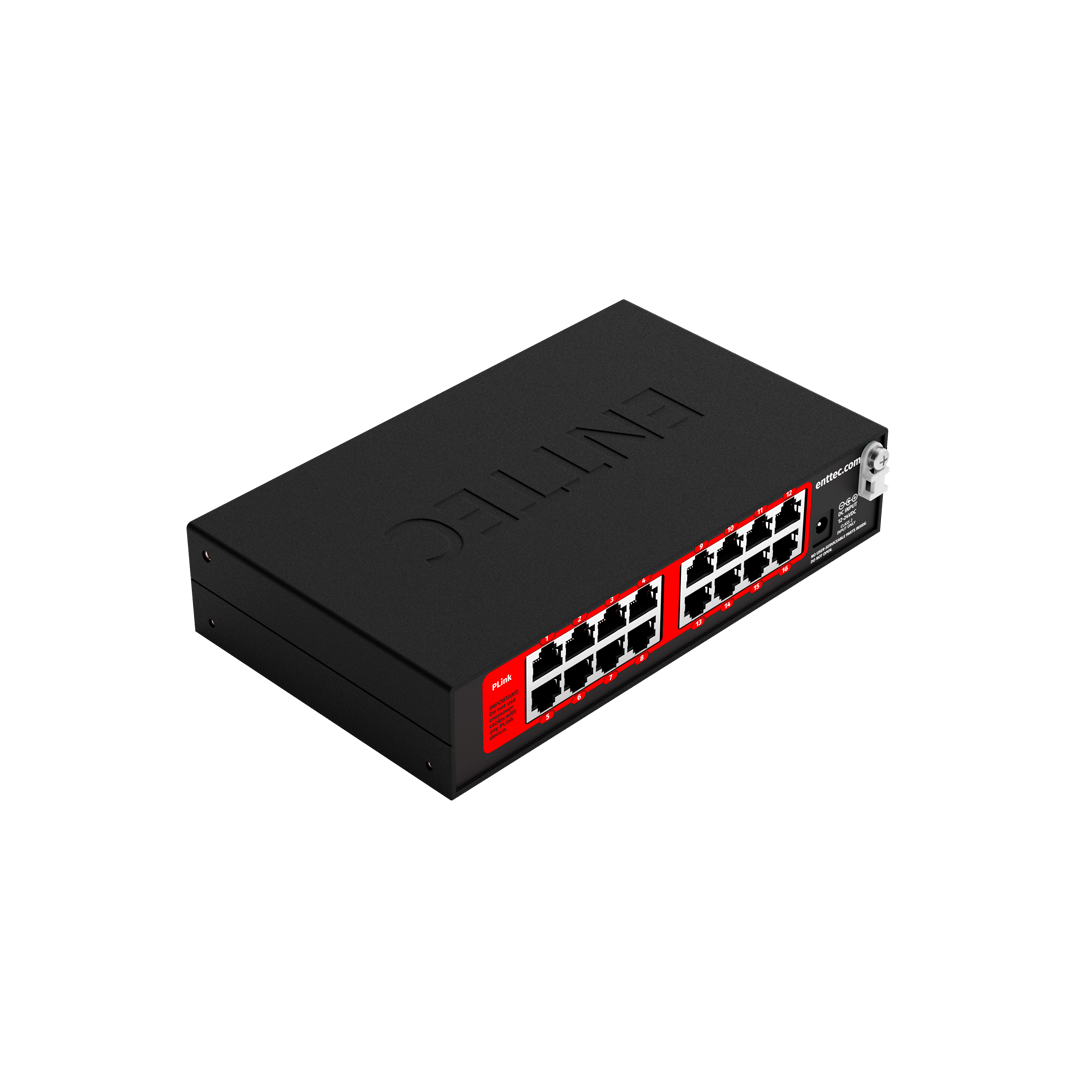

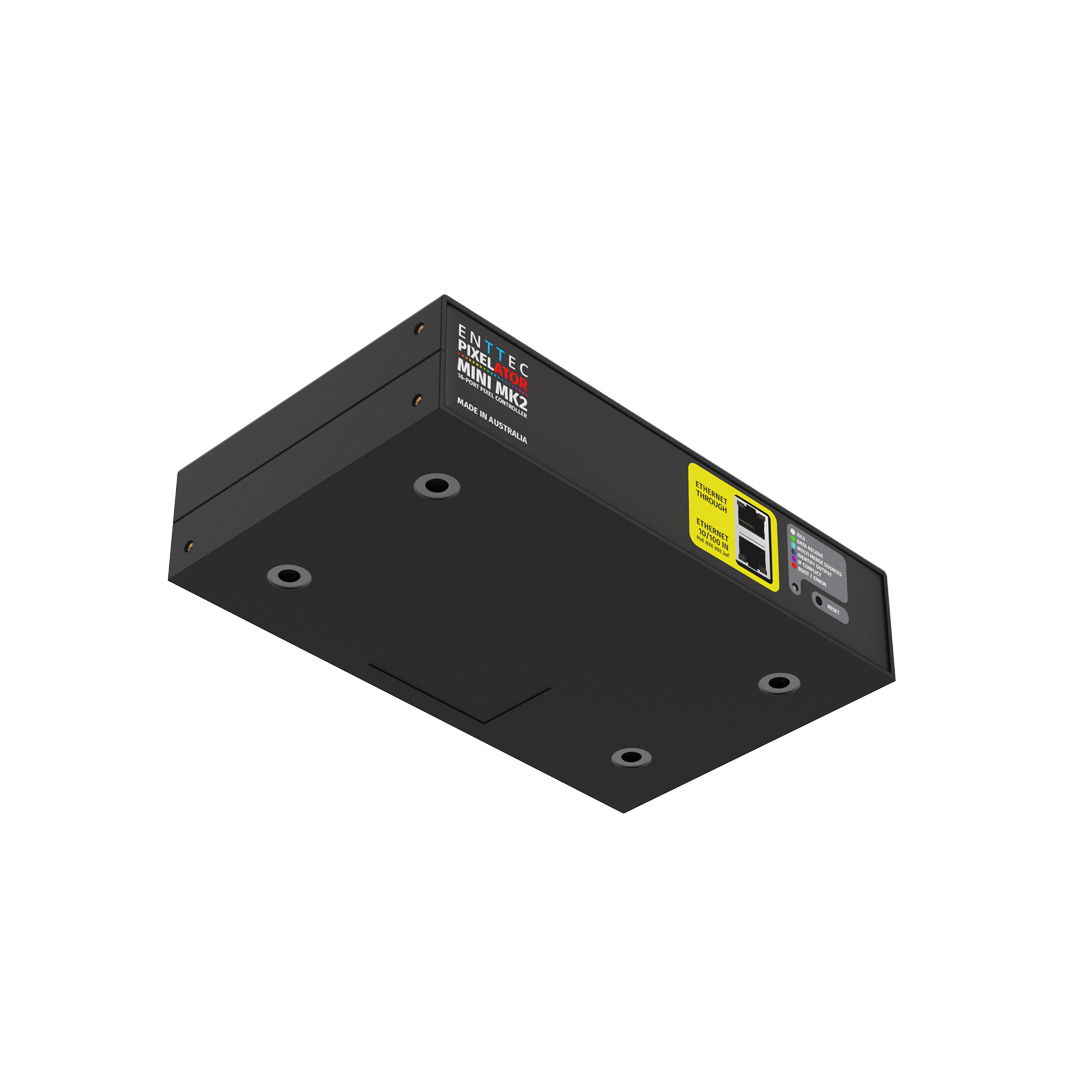

PIXELATOR MINI MK2

The OCTO is a fantastic, compact and powerful device for controlling pixels. It outputs your chosen SPI protocol and you simply connect its ports directly to your light fixtures.

The PIXELATOR MINI and PIXELATOR MINI MK2, however, have a distinct advantage when it comes to larger installations.

They do not directly output SPI protocol. Instead, they send ENTTEC's PLink protocol which is specifically designed to be carried for long distances without losing its integrity.

Pixelator output ports are connected to a series of PLINK INJECTORS that can stretch as far away as 300m from the Pixelator unit. These easy-to-install, compact devices connect to your light fixtures and convert the PLink data into your required SPI protocol. There are even IP66-rated PLINK INJECTORS available for installations where harsh environmental conditions may be a factor.

Whereas an OCTO can convert up to 16 universes of data, the PIXELATOR MINI will give you a generous 32 universes, and the PIXELATOR MINI MK2 an outstanding 128 universes. So, as well as its advantage when it comes to physical distances, you are also getting a lot more control channels when using Pixelators. This makes them ideal for dense arrays and complex, high-resolution installations.

Lastly, while both OCTO and PIXELATOR devices can control SPI-fed LED pixel fixtures, the PIXELATOR series also has the ability to control Constant Voltage (CV) and Constant Current (CC) fixtures. Instead of PLink Injectors, use CVC4 constant voltage dimmers to operate CV lights or CCC4 constant current dimmers for CC lights.

And of course, if you're still not sure which is the right ENTTEC pixel controller for you, simply talk to us! We're always more than happy to help.

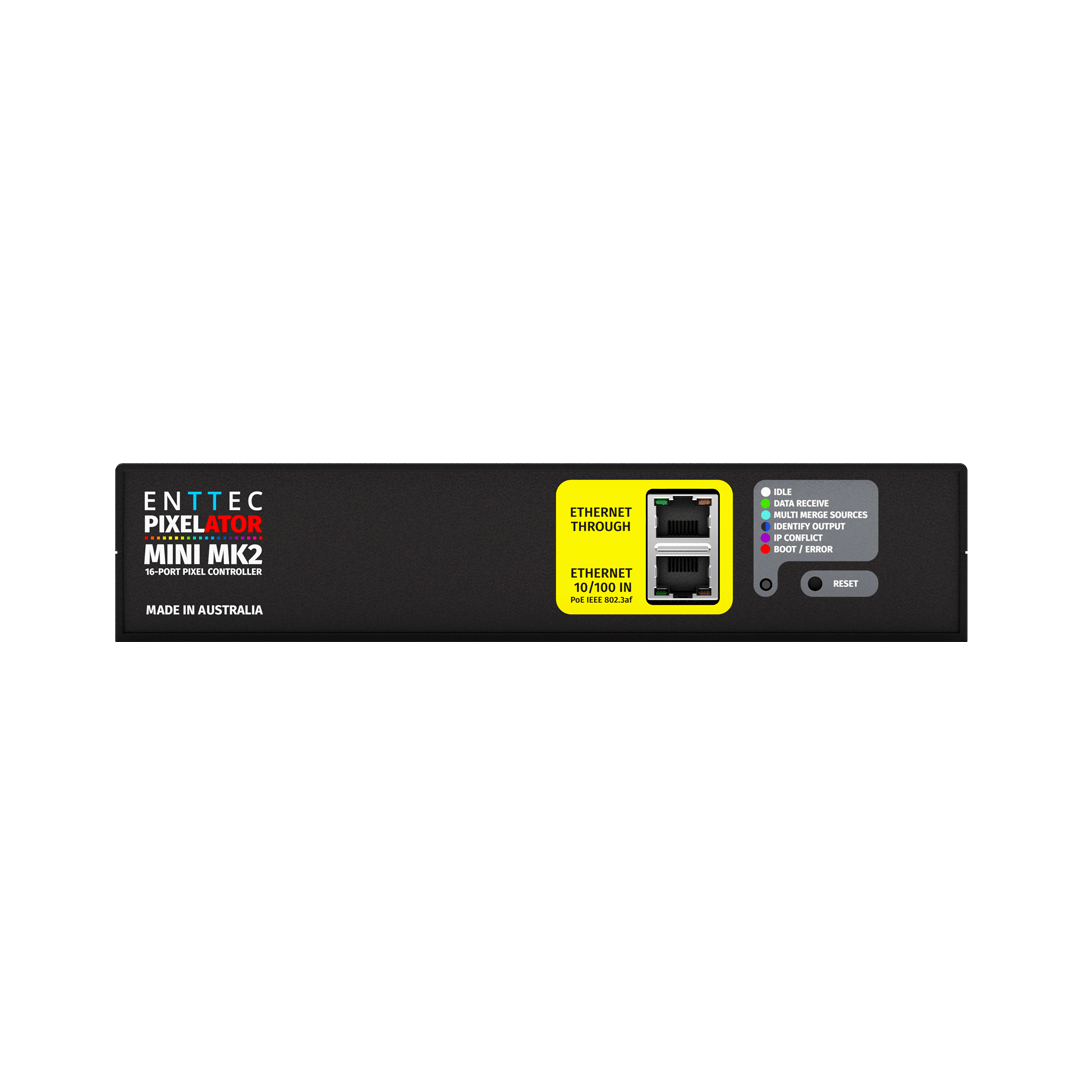

ENTTEC are proud to have pioneered the introduction of user-friendly web browser interfaces in the lighting control sector. Just like all ENTTEC network products, simply connect to your PIXELATOR MINI MK2 from anywhere on the same network using your favourite web browser to configure, manage and update your device settings. It’s that simple!

That’s right! Although ostensibly a 96-universe LED controller, the PIXELATOR MINI MK2 will efficiently convert up to 128 universes of DMX-over-Ethernet to PLink pixel data (8U per output), with auto-activation of Overdrive Mode when configured to output more than 6U per port – because you never know when you might need that little bit extra.

Jam-packed with features to make your installation run smoothly. Select any input universe number and assign it to any output port, or reduce your DMX input control channel count by creating pixel groups. Choose from static or DHCP network configurations, and configure pixel ordering with ease to patch any standard fixture type in your lighting controller. The list goes on!

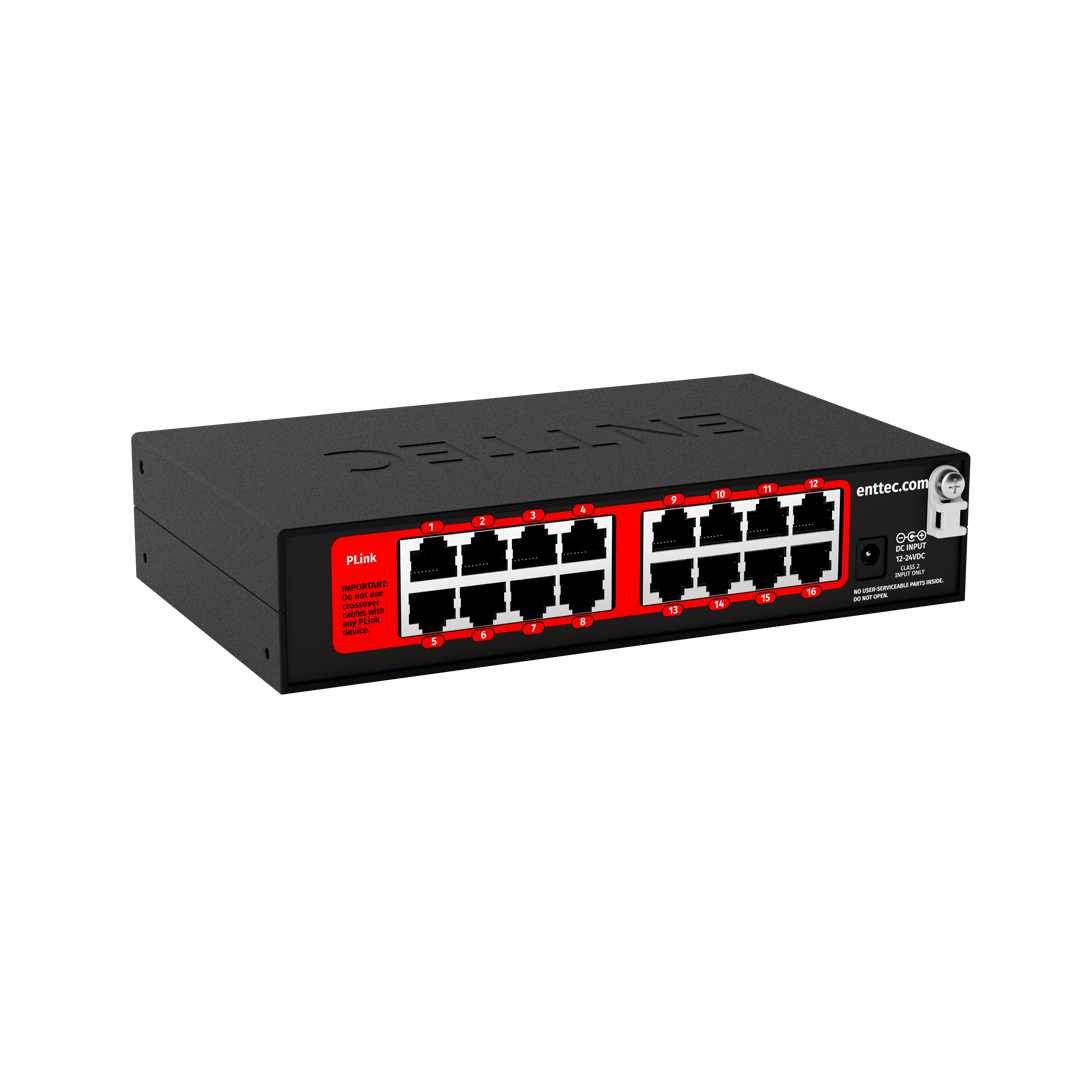

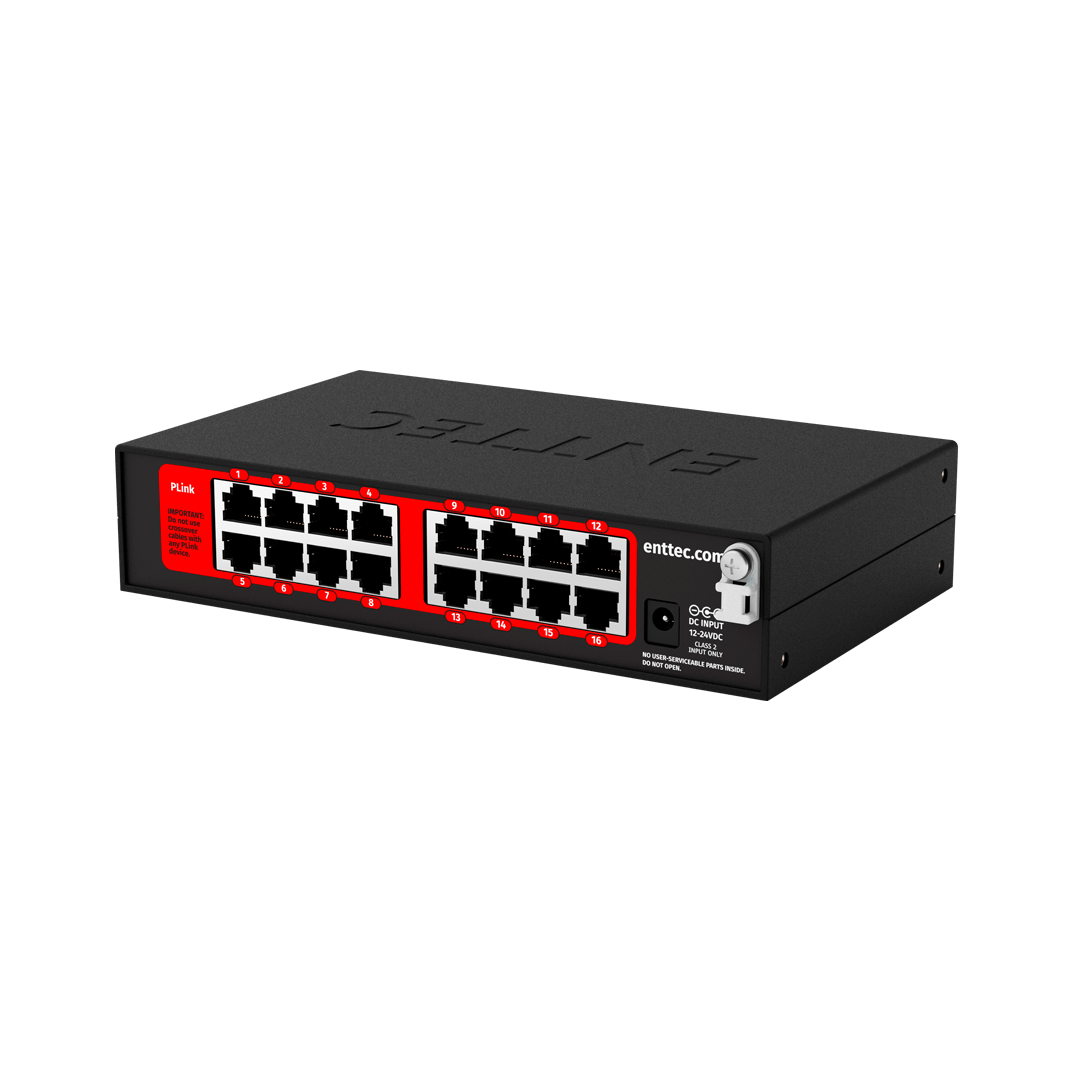

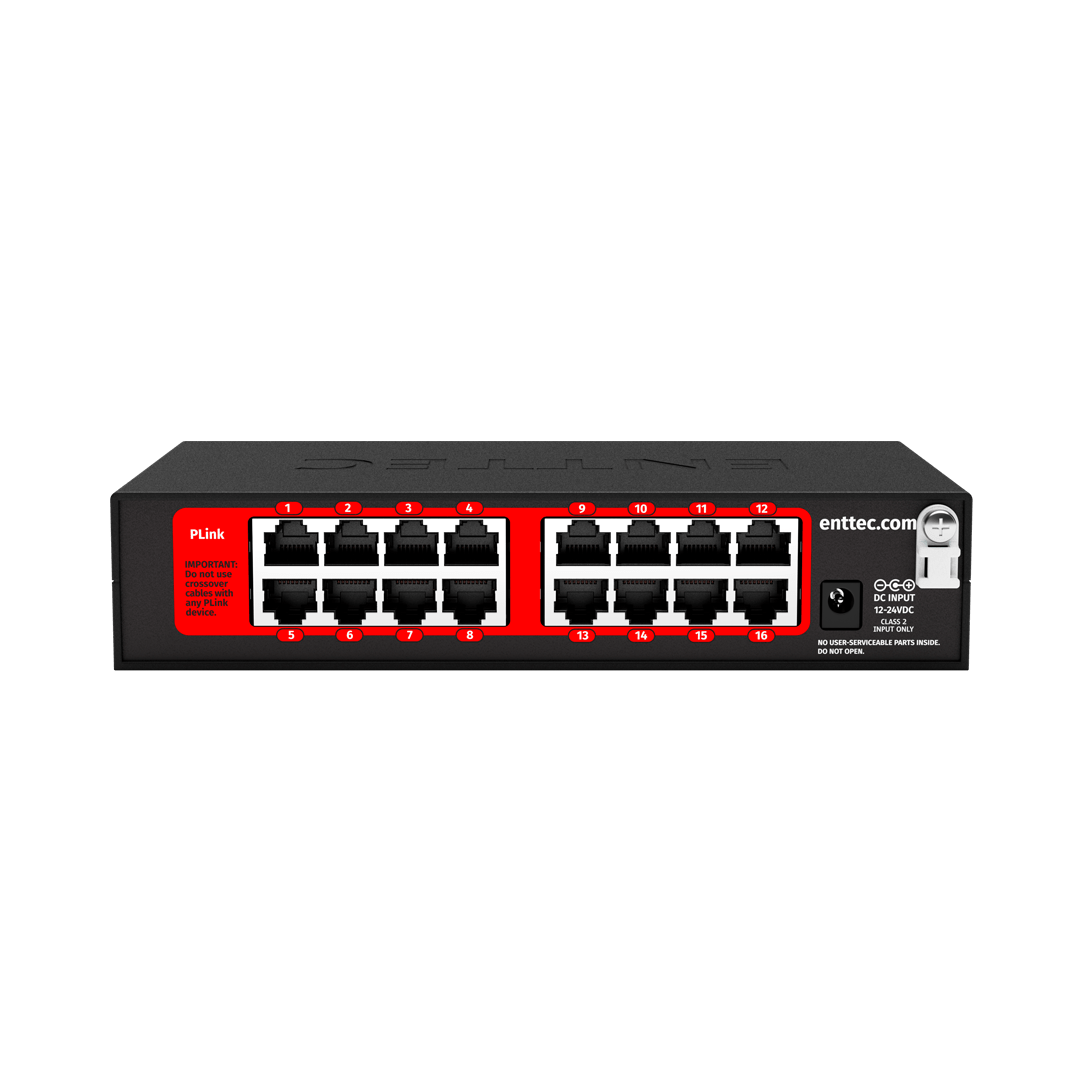

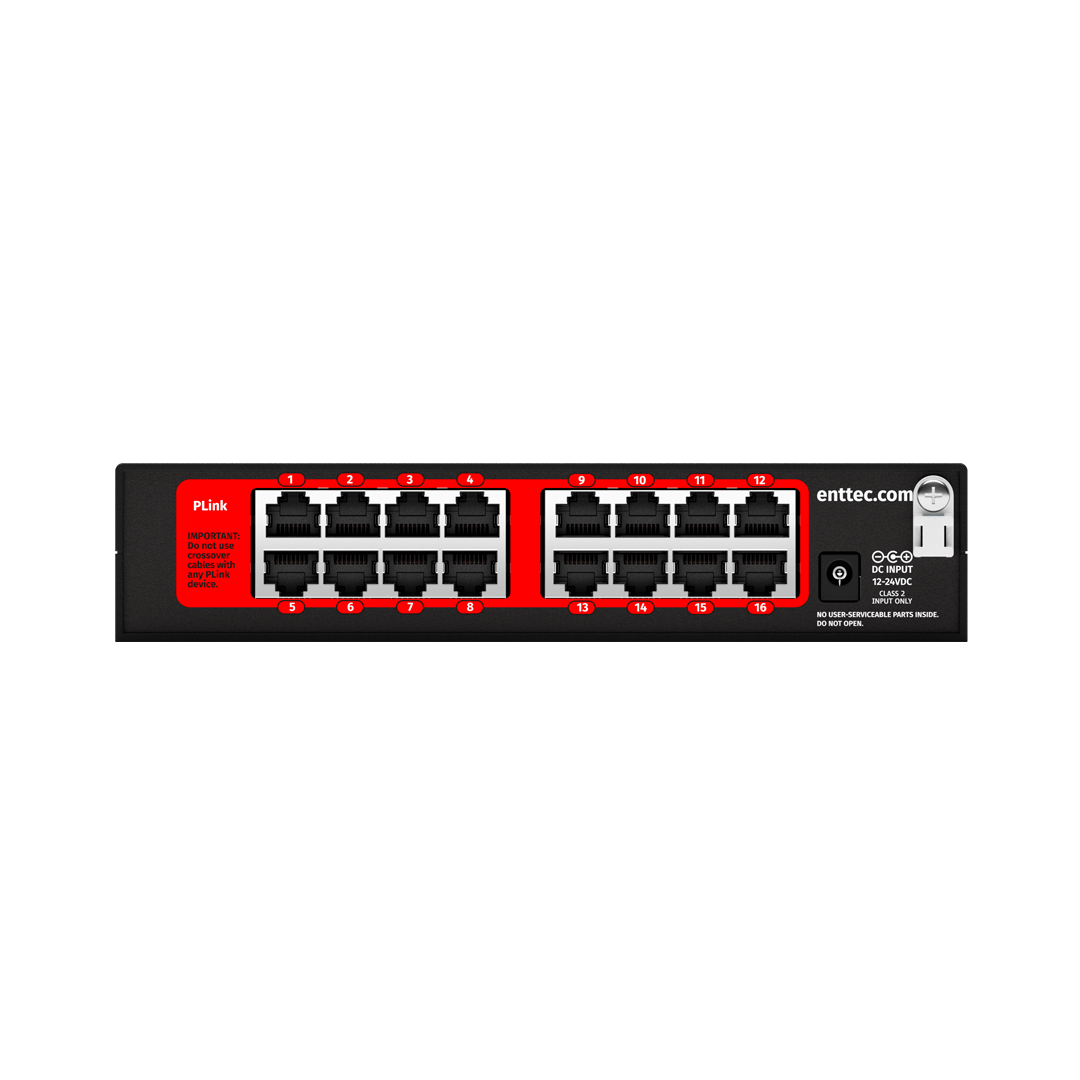

The PIXELATOR MINI MK2 features an internal buffer and sync logic to ensure all 16 PLink output ports stay perfectly synchronised. Across multiple devices, keep frames short and run above 35 FPS, where any small timing difference between devices is far less noticeable, so you can build vast LED matrixes without visible tearing.

Control up to 128 universes of pixels (16,384 RGBW / 21,840 RGB / 65,536 W), and output more than 20 different built-in pixel protocols. What’s more, you can output up to four different protocols simultaneously using ports ports 1-4, 5-8, 9-12 and 13-16. In the event of a missing protocol, our custom feature allows users to create their own protocol for any desired pixel fixture anytime – without having to submit a support request for new firmware.

The PIXELATOR MINI MK2 has been engineered with surge protection for serious 24/7 operation. If your data cabling has a fault that causes a spike in voltage, a heavy-handed installer gives it static shock, or maybe your DMX lines have a lot of electrical noise on them, the issue won’t be passed through the device to your other equipment. Any disturbance is automatically suppressed.

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.

This ENTTEC product also conforms to the following international compliance and safety standards:
