Blunsdon Fitness+ Cycle Studio

Scroll

Immersive LED gym

ENTTEC and architectural lighting specialists ErosPhos transformed Blunsdon Fitness+'s cycle studio with an immersive LED lighting system. Using ENTTEC's Pixelator, PLink Injectors, and 50 meters of pixel tape, the installation created dynamic, synchronized lighting effects controlled by media servers via a touchscreen interface.

With health-conscious consumers demanding more flexible ways of improving their fitness, it’s important that gyms and leisure centres provide members with the best environment, equipment and unrivalled experience to support them in achieving their health and fitness goals.

Architectural lighting specialists ErosPhos succeeded in creating the cycle+ studio: an exclusive, high-quality and inviting space designed to stimulate all the senses, using an ENTTEC Pixelator, PLinks and 50 metres of pixel tape. The ENTTEC Pixelator, now a legacy product, converted Art-Net and sACN protocols to handle 48 universes. It managed over 8000 pixels from the studio's pixel mapping software, and took care of the rest.

All the lighting effects are driven by dedicated media servers controlled from a customised touchscreen interface mounted onto the instructor’s spin bike. The instructor simply selects a music track on the touchscreen interface which has been pre-programmed for convenience and this begins the synchronised sound and lighting, meaning that the lighting effects are truly consistent with the music that is being played.

Solution

Controls

Powered by ENTTEC Pixelator and 20 x PLink Injectors

Lights

Lit up by 50 metres of 5V RGB 60-LEDs/m pixel strip

Diagram of the chain, a rack-mounted Pixelator feeding a PLink injector which in turn drives a run of pixel tape

High-endurance exercise combined with high-intensity lighting to produce a zone which is entertaining and exhilarating, we have been able to entice gym users from all backgrounds to join in and use the space. Using cutting-edge technology to create such a space has increased membership signups, general use of the gym and of course, raised revenue, marketing and promotion of the brand.

Russell VanstoneTECHNICAL DIRECTOR, EROSPHOS LTD.

Result

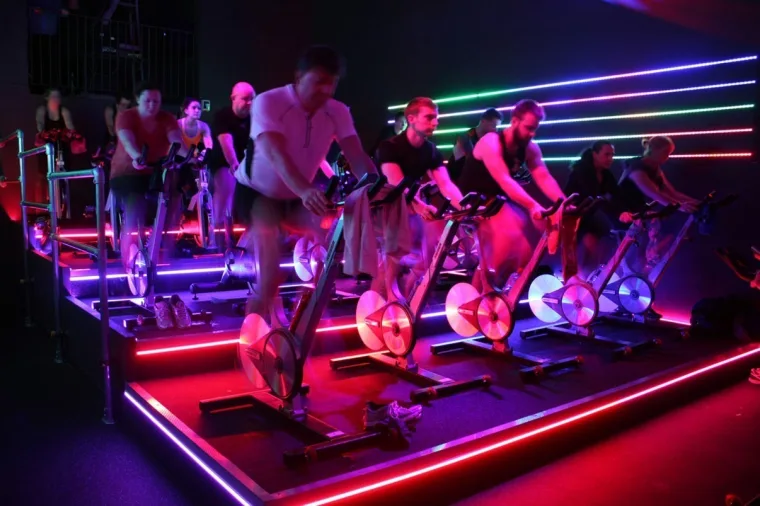

  • Rows of spin bikes with riders working, rainbow strips fanning across the back wall and a red line along the floor

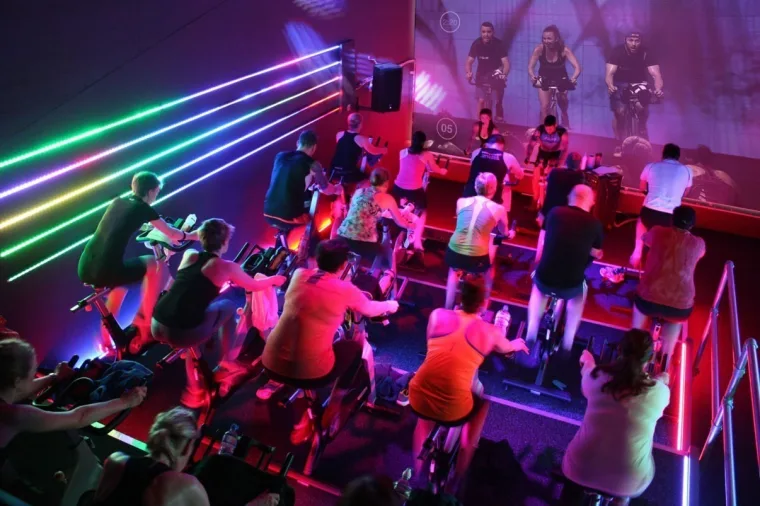

  • The studio from the back corner, a full class riding beneath the rainbow strips with a screen of cyclists on the far wall
  • Wider on the same moment, more of the class in shot including a rider in blue with her arms raised

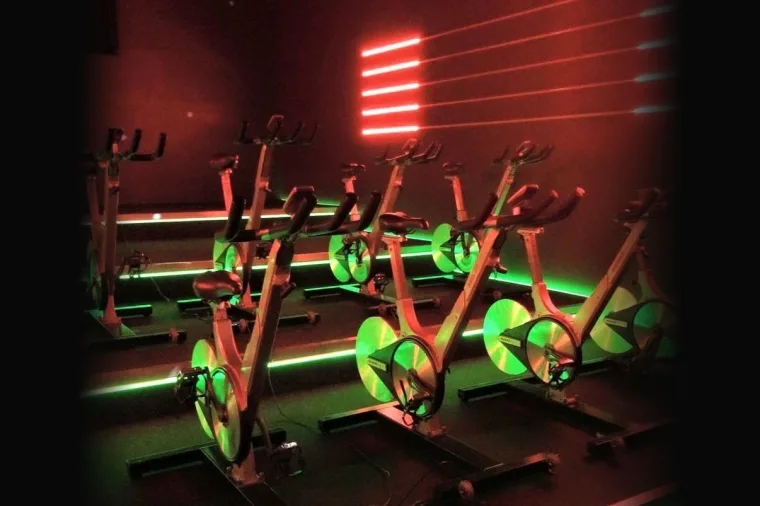

  • The empty studio before a class, bikes ranked in rows and the wall strips glowing red and green
  • Riders side on with the strips running blue, pink and green, the floor line burning red beneath the bikes

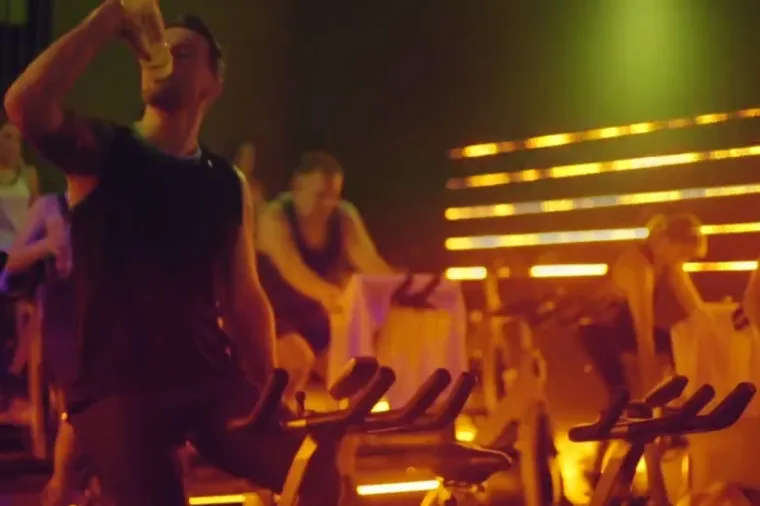

  • The class under amber and yellow strips, one man sitting up to drink from his bottle mid ride
