ODE MK3
With 2 Universes of Ethernet to DMX conversion featuring Art-RDM support, Power over Ethernet (PoE) or a flexible 12-24v DC input, the ODE MK3 allows for fast deployment of DMX systems compatible with a wide range of devices.
The ultimate Power Over Ethernet DMX interface

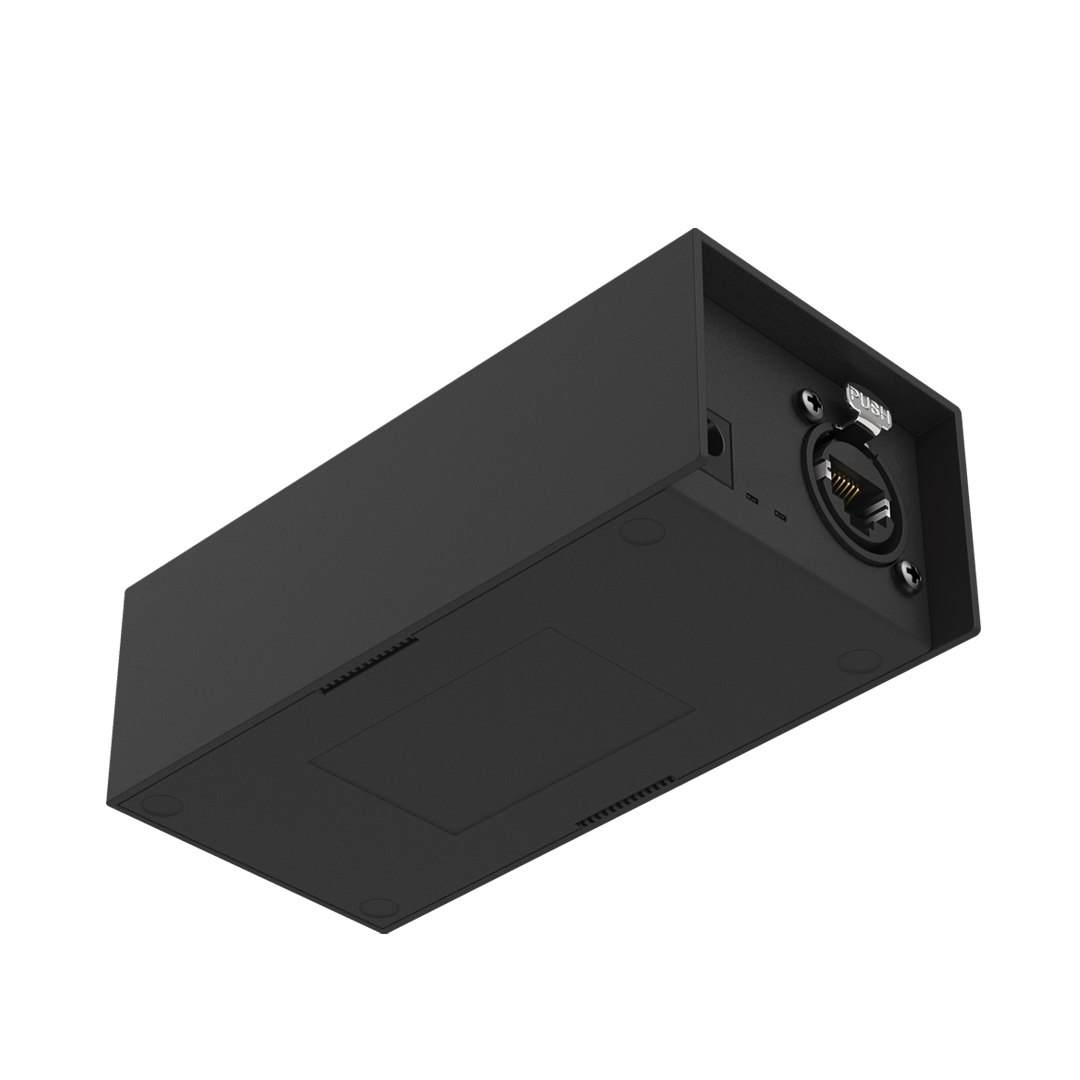

The ODE MK3 is a robust, reliable, installation-grade, Ethernet to DMX converter engineered to connect DMX fixtures to your Ethernet network infrastructure. Now you can expand your lighting project to the next level.
With 2 Universes of bi-directional eDMX to DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows for fast deployment of your DMX system. Simply connect, configure and take control!
Additionally, this Ethernet to DMX/RDM gateway is packed with installer-friendly features for a speedy installation and configuration, all managed through a web UI – and contained in a compact, portable form factor.
Configuration is managed through the localhost web interface to simplify commissioning and updates. Consequently, the ODE MK3 to be configured from any computer on your network.
Power the ODE MK3 using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.
All ENTTEC Ethernet hardware accepts ArtSync to fully synchronise Art-Net data across your installation when receiving Art-Net from the same source to protect against content tearing and ensure a professional looking output across your rig.

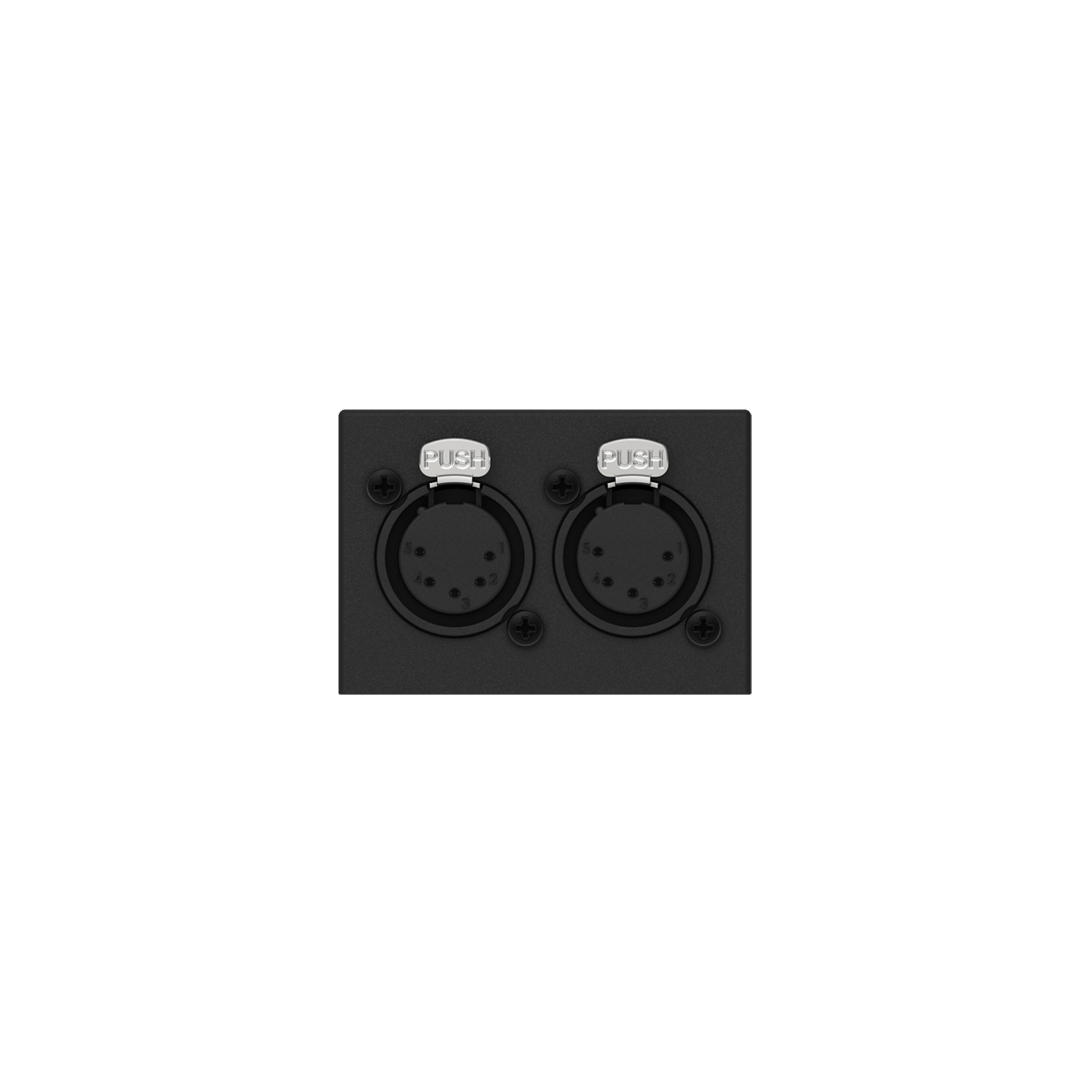

This Ethernet to DMX converter is packed with installer-friendly features including industry standard 5-pin XLR ports to simplify wiring.
Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the localhost web interface to troubleshoot your installation. Upon receiving power, the device is ready to for action within seconds.
The LED indicators allows you to monitor connectivity & status in a quick glance.
The ODE Mk3’s primary functionality is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX). The following conversions are available with the ODE Mk3: Art-Net – DMX (with/without RDM. ANSI E1.20 RDM supported) DMX – Art-Net (Broadcast or Unicast) sACN – DMX DMX – sACN (Multicast or Unicast) ESP – DMX DMX – ESP (Broadcast or Unicast)
The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.
This ENTTEC product also conforms to the following international compliance and safety standards:

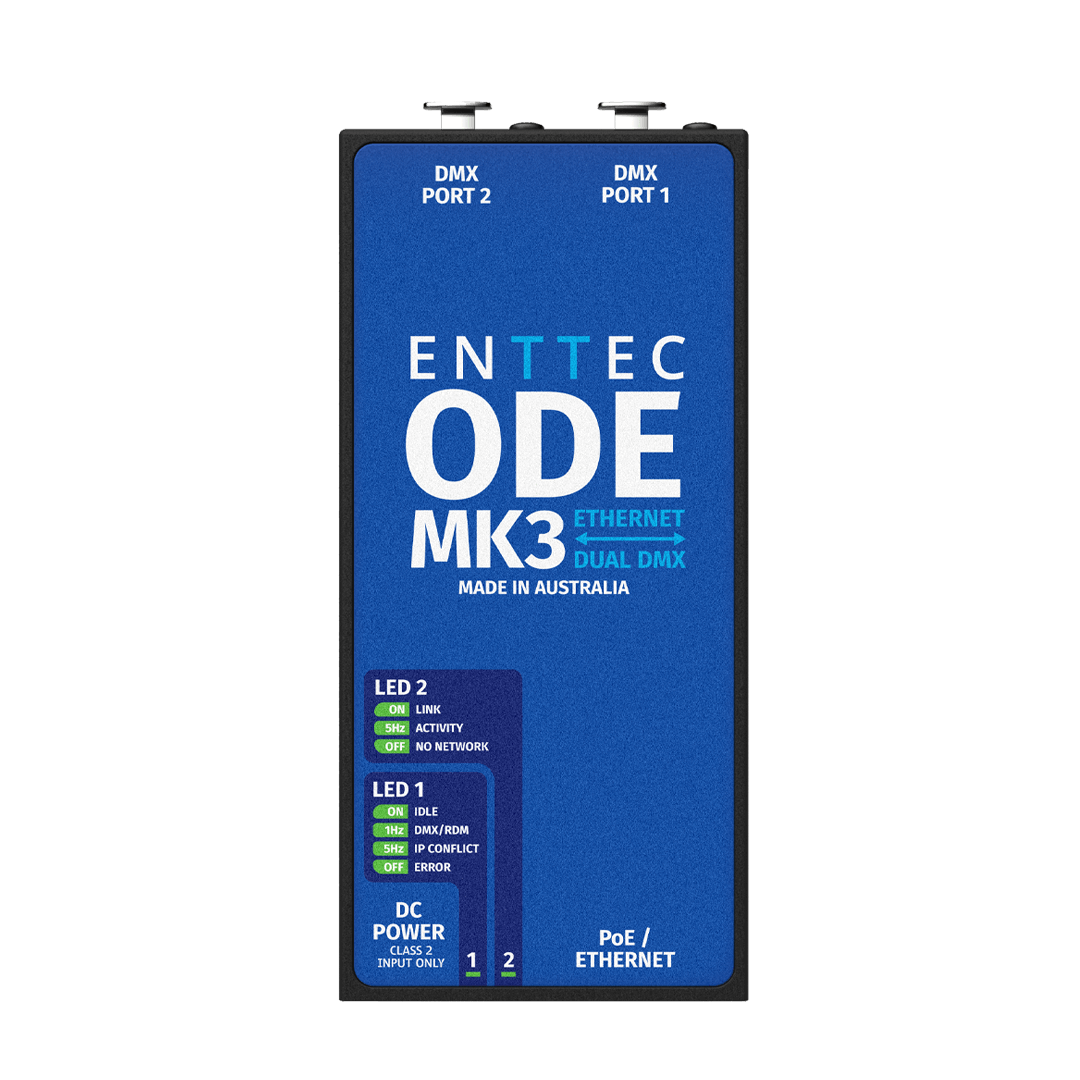

The ODE MK3’s LED status system lets you know exactly what your device is doing
The ENTTEC ODE MK3’s status system is designed to offer real-time feedback on its operational state through LED indicators. These indicators provide essential information about the device’s connectivity, activity, and DMX status, helping users troubleshoot and monitor the system.
Specifications

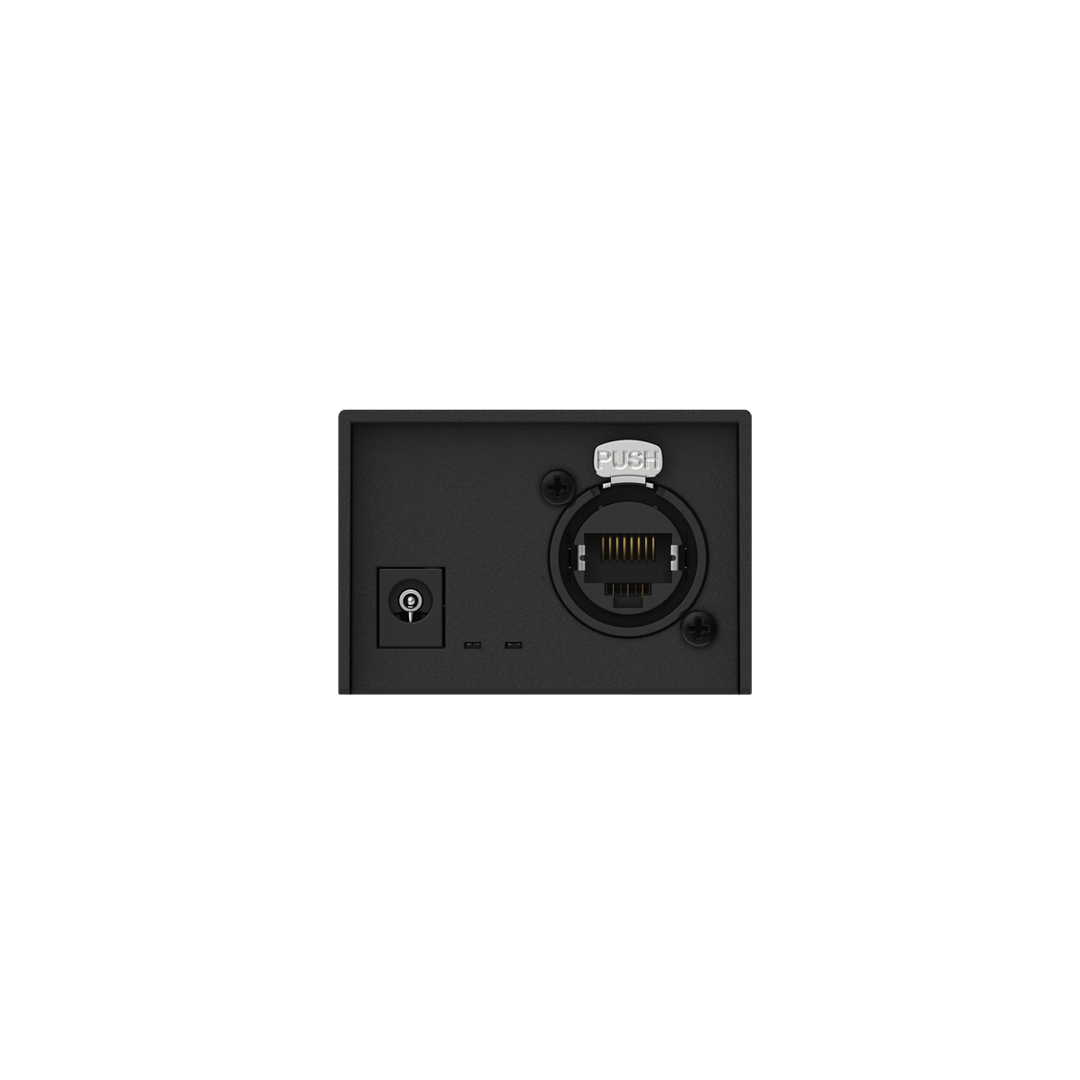

| Connectors | 1 x EtherCon Port (RJ45), 2 x Bi-directional DMX (Female XLR5), 1 x Power Input (DC Jack) |
| IP rating | IP20 |
| Input voltage | 12-24V DC |
| Current draw | 57-187mA |
| Max. power draw | 2.3W |
| LED indicators | Status indicator, Network Link / Activity indicators |
| eDMX Protocols | Art-Net / Art-RDM / sACN / ESP |
| Protocols | USITT DMX512-A / ANSI E1.20 RDM |
| DMX & RDM Timings | Break time, 300ms / Mark after Break (MAB), 15ms |
| Max. Channels | 2 Universes (1024ch) |
| Max. Refresh Rate | 44FPS |
| Art-Net Merging | 2 Sources |
| Network Speed | 10/100 Base-T |
| Power over Ethernet | IEEE 802.3af |
| IGMP Version | IGMPv2 |
| Network Configuration | DHCP/Static (default 192.168.0.10) |
| Configuration Software | Web Browser |
| Firmware Updates | Web Browser |
| Environmental operating temperature | 0°-50°C / 32°-122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Body material | ABS Plastic |
| Unit dimensions | 129mm x 58mm x 40mm |
| Unit weight | 0.10kg / 0.22lbs |
| Shipping dimensions | 235mm x 159mm x 69mm |
| Shipping weight | 0.45kg / 0.99lbs |
| Warranty | 3-year return to base manufacturer warranty |
