Name: 12V RGBW 60-LEDs/m pixel strip
Brand: ENTTEC
SKU: 8PXA60-RGBW-12V
Availability: OutOfStock

12V RGBW LED pixel strip for professional applications

ENTTEC's 8PXA60-RGBW-12V series are 12V, 60-LED-per-metre, addressable RGBW LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colours on a large scale.

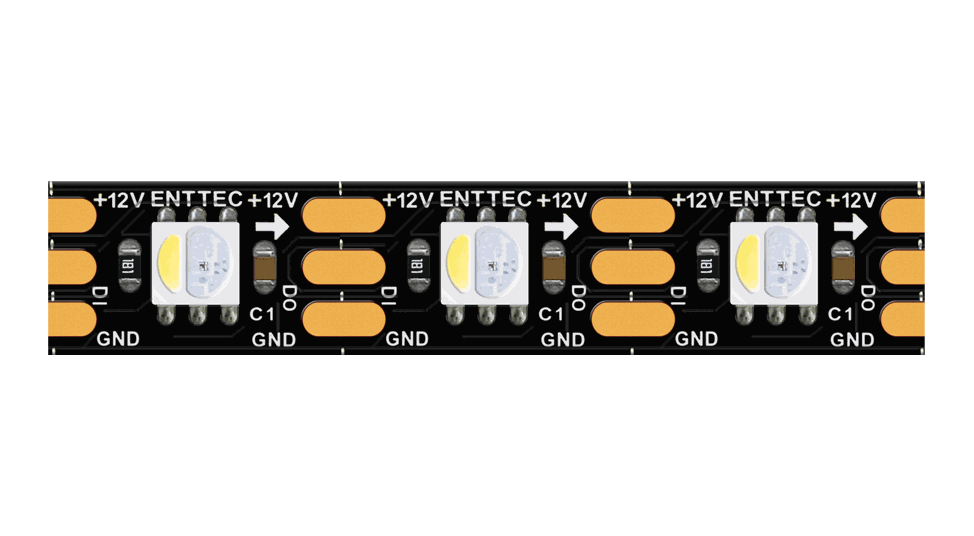

Close-up of the black PCB strip, a white emitter beside a three-in-one RGB emitter, between copper solder pads marked ENTTEC, +12V, DI, DO and GND.

Image 1 of 3

60 RGBW LEDs per metre

ENTTEC LED pixel strip boasts 60 colour-calibrated, individually-addressable, RGBW LEDs per metre. Each LED is patched as an individual pixel, and offers consistent brightness and extended colour gamut.

Bright + super-efficient

With a maximum power consumption of only 21.8 watts per metre, and a lumen capacity of 1,088 lumens per metre, this 12V pixel strip provides a bright and efficient package.

Black or white

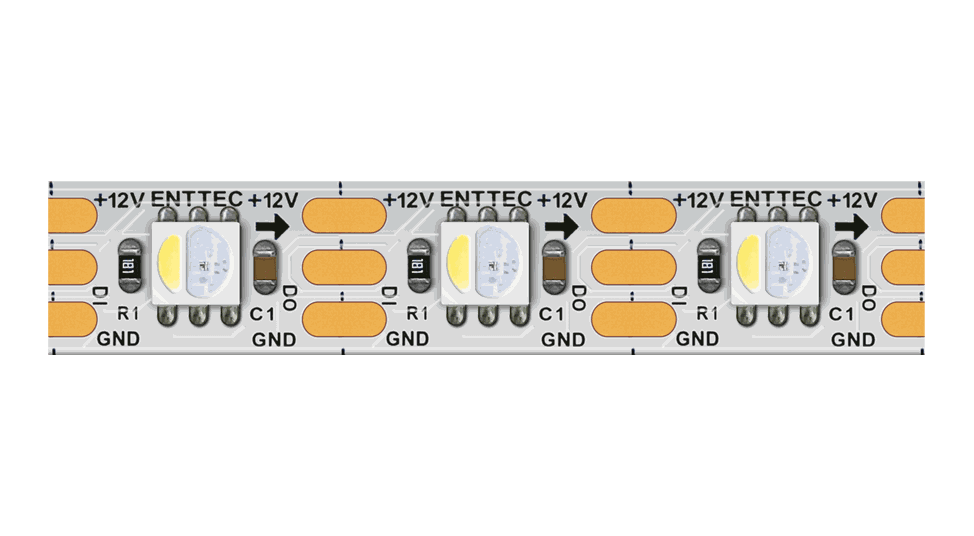

A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

Australian designed for performance

Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Millions of colours

Each pixel can achieve a 32-bit, True Colour display. That’s a whopping 4,294,967,296 possible colours for each LED chip.

Extend as you please

Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only

1-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 1-year return-to-base manufacturer warranty on this product.

International compliance

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.

This ENTTEC product also conforms to the following international compliance and safety standards:

Is this the right LED strip for your project?

With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per metre, PCB colour, and more.

If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

A black strip and a white strip on a pale textured background beside an ENTTEC ruler, above a row of compliance marks.

Specifications

Search specifications

Connectors and network
Connectors	2 x 3-pin JST SM connectors (3A Max)
Output and control
Control protocol	SK6805 IC chips (compatible with SK6812 protocol)
DMX channels per pixel	4
Pixel mapping order	GRBW
Backup data line	No
Efficacy (lumens per watt)	49.82
Beam angle	120°
Power and thermal
Input voltage	12V
Max. watts per metre	21.8 W
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	5 - 95% (non-condensing)
Physical and supply
IP rating	IP20
PCB colour	Black or white options
PCB width	10mm / 0.40”
Min. bend radius	30mm / 1.2”
Spacing between cuttable sections	16.6mm / 0.66”
Weight	(5m roll) 0.18Kg / 0.40lbs
Dimensions	(5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
Shipping weight (5-roll carton)	0.80Kg / 1.76lbs
Shipping dimensions (5-roll carton)	260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
Warranty	1-year return-to-base manufacturer warranty
Compliance	UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
