The industry standard USB to DMX converter
Products don’t become an industry standard for no reason. Used on a daily basis by countless lighting designers and installers across the world, the DMX USB PRO converter has proven for many years that it’s a reliable and robust product that excels at so many fundamental applications.
Image 1 of 5
Widely compatible
Designed for simple USB connections across Windows, Mac and Linux, this device is compatible with an enormous range of commercial and free software.
Input or output
The DMX USB converter supports either DMX Input or DMX Output mode and comes RDM-enabled and has an internal frame buffer for steady DMX generation.
Isolated to protect
With industry standard-5 pin input and output connections as well as 1500V full isolation for both data and power lines, you can rest assured that your computer will be protected.
Perfect timing
Features an internal frame buffer for consistent DMX generation, therefore isn’t dependent on your computer’s processor to regulate a steady, reliable flow of data.
Industry standard
Industry Standard USB 2.0 support on Windows PC and MacOS, and popular Linux flavours. Even Raspberry Pi is supported, for the hobbyist within you!
Flexible
Refresh rate is fully configurable from 1 to 40 fps. Break time is configurable from 96uS to 1.3mS, and MaB is configurable from 10.6uS to 1.3mS. You can even change the firmware to support your requirement.
3-year warranty
ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.
Let’s get started!
It’s so easy to produce great shows and ambiences with a DMX USB PRO as part of your lighting kit.
Follow this short demonstration to learn about the essential features of the device, and see how simple it is to set up.
You’ll be thrilling your audiences in no time!
Specifications
| Connectors and network | |
|---|---|

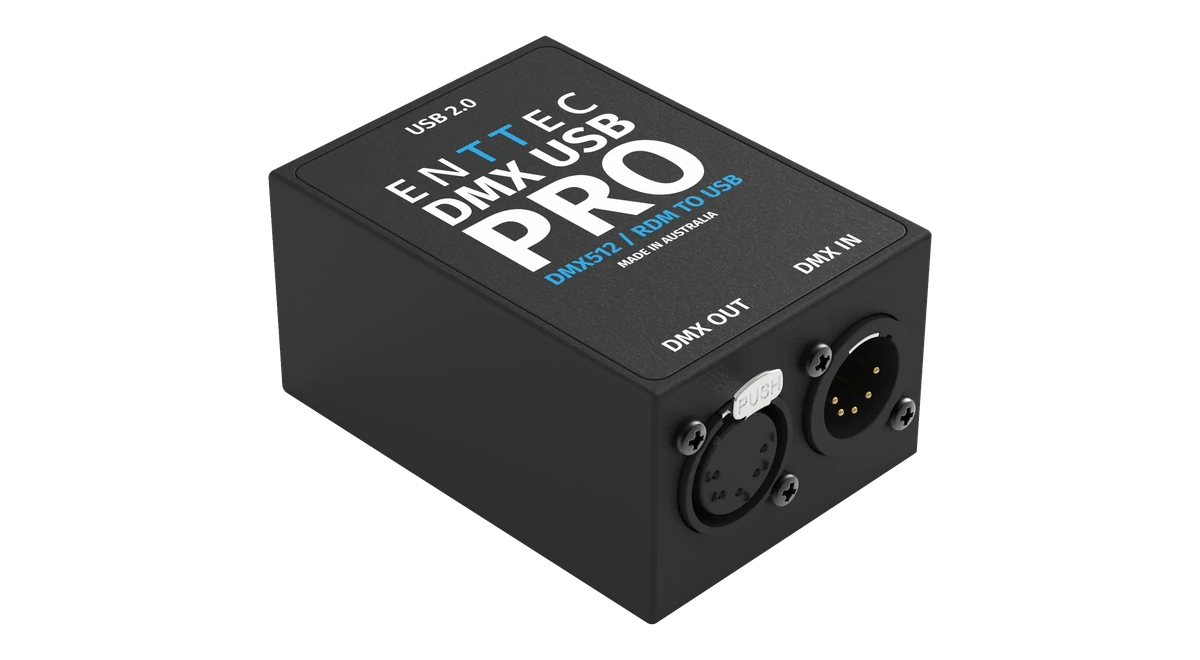

| Connectors | 1 x DMX output (female XLR5), 1 x DMX input (male XLR5), 1 x USB 2.0 Type-B |
| LED status indicator | Yes |
| Output and control | |
| Protocols | USITT DMX512-A, ANSI E1.20 RDM (if supported by your third-party software) |
| Maximum output channels | 1 universe (512ch) |
| Max. output refresh rate | 40FPS |
| Configuration software | ENTTEC EMU |
| Firmware updates | ENTTEC EMU |
| Standalone playback | No |
| MIDI | No |
| Power and thermal | |
| Input voltage | 5V DC (via USB) |
| Input current | 300mA |
| Power draw | 1.5W |
| Operating temperature | 0° – 50°C / 32° – 122°F |
| Operating humidity | 5 – 95% (non-condensing) |
| Physical and supply | |
| Body material | ABS plastic |
| IP rating | IP20 |
| Mounting options | N/A |
| Unit dimensions | 80mm (3.15in) x 58mm (2.28in) x 40mm (1.57in) |
| Unit weight | 80 g / 0.18lbs |
| Shipping dimensions | 237mm x 165mm x 71mm |
| Shipping weight | 0.30kg / 0.66lbs |
| Warranty | 3-year return-to-base manufacturer warranty |
| Compliance | RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
